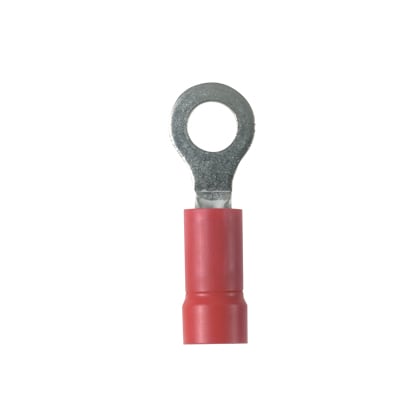

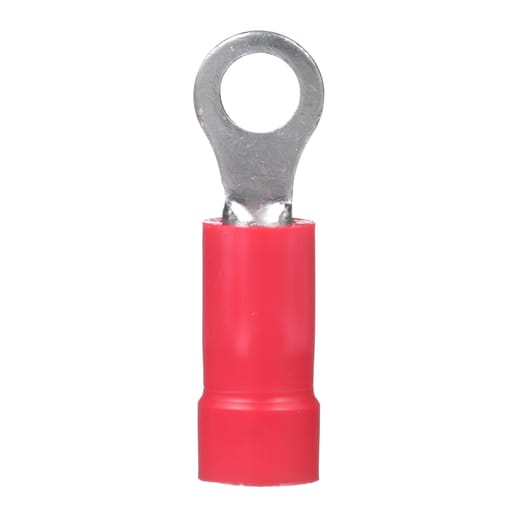

Panduit Corp - Panduit PV18-6R-MY 22-18 AWG Vinyl Insulated Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983416974
Buy American - Y
Catalog Number - PV18-6R-MY
Color - Red
Conductor Size - 18 AWG
Packaging
1 ea
EAN
00074983416974
Part #
135083
Catalog #
PV18-6R-MY
Commercial reference
PV18-6R-MY
12-Digit UPC:
074983416974
Buy American:
Y
Catalog Number:
PV18-6R-MY
Color:
Red
Conductor Size:
18 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV18-6R-MY RING TERM BULK-PK
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.86 in
Size:
#6
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Ring Terminal
Voltage:
600 Volt
Widths:
0.25 in
Wire Size:
18 AWG
SoneparProductId:
SKU_US_25573446
The PV18-6R-MY Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212 - Prop 65: No
