Panduit Corp - Panduit PV18-8LF-MY Fork Terminal, Red, Vinyl, 18-22 AWG, #8 Stud, PK1000
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983417032
Buy American - Y
Catalog Number - PV18-8LF-MY
Color - Red
Conductor Size - 18 AWG
Packaging
1 ea
EAN
00074983417032
Part #
183046
Catalog #
PV18-8LF-MY
Commercial reference
PV18-8LF-MY
12-Digit UPC:
074983417032
Buy American:
Y
Catalog Number:
PV18-8LF-MY
Color:
Red
Conductor Size:
18 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV18-8LF-MY LKGFORKTERM,VYL,22,18AWG,#8STUD,PK1 000
Enclosure:
Fork shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.97 in
Size:
#8
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Locking Fork Terminal
Voltage:
600 Volt
Widths:
0.29 in
Wire Size:
18 AWG
SoneparProductId:
SKU_US_29717461

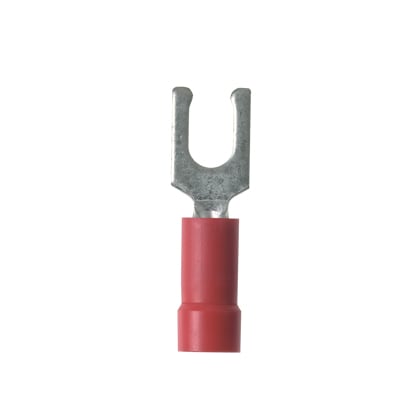

The PV18-8LF-MY Pan-Term® Terminal is a vinyl insulated, locking fork terminal. The locking tongue design locks in place for a secure connection. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength. Standards and Certifications: Standards Met: UL Listed 587H E52164; CSA Certified LR31212
