Panduit Corp - Panduit PV18-8RB-3K Ring Terminal, Red, Vinyl, 18-22 AWG, #8 Stud, PK3000
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983803507
Buy American - Y
Catalog Number - PV18-8RB-3K
Color - Red
Conductor Size - 18 AWG
Packaging
1 ea
EAN
00074983803507
Part #
323952
Catalog #
PV18-8RB-3K
Commercial reference
PV18-8RB-3K
12-Digit UPC:
074983803507
Buy American:
Y
Catalog Number:
PV18-8RB-3K
Color:
Red
Conductor Size:
18 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV18-8RB-3K REEL SMART? PV18-8RB-3K RING TERMINAL, R
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
0.86 in
Size:
#8
Sub Brand:
Reel Smart™
Tc Connection:
Funnel Entry
Type:
Ring Terminal
Voltage:
600 Volt
Widths:
0.31 in
Wire Size:
18 AWG
SoneparProductId:
SKU_US_29606953

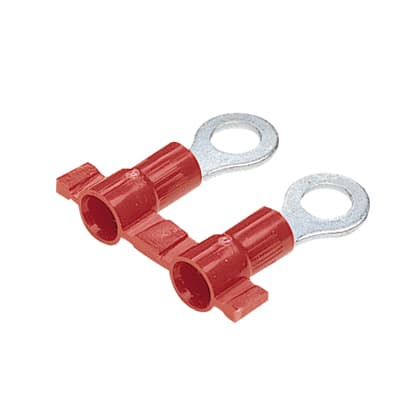

The PV18-8RB-3K Reel Smart™ Terminal is a continuously molded and vinyl fully insulated ring terminal. The continuously molded design allows for consistent and reliable processing through Panduit applicators. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
