Panduit Corp - Panduit PV6-14R-X Vinyl Insulated Large Wire Ring Terminal
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983124466
Buy American - Y
Catalog Number - PV6-14R-X
Color - Blue
Conductor Size - 6 AWG
Packaging
1 ea
EAN
00074983124466
Part #
268398
Catalog #
PV6-14R-X
Commercial reference
PV6-14R-X
12-Digit UPC:
074983124466
Buy American:
Y
Catalog Number:
PV6-14R-X
Color:
Blue
Conductor Size:
6 AWG
Country of Origin:
Mexico
ERP_productname:
PAND PV6-14R-X PAN-TERM? PV6-14R-X LOOSE PIECE RING TER
Enclosure:
Ring shape
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
1.65 in
Size:
1/4"
Sub Brand:
Pan-Term®
Tc Connection:
Funnel Entry
Type:
Ring Terminal
Voltage:
600 Volt
Widths:
0.47 in
Wire Size:
6 AWG
SoneparProductId:
SKU_US_25630642

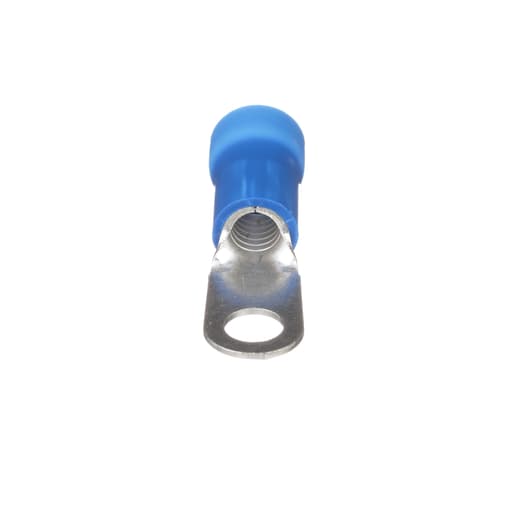

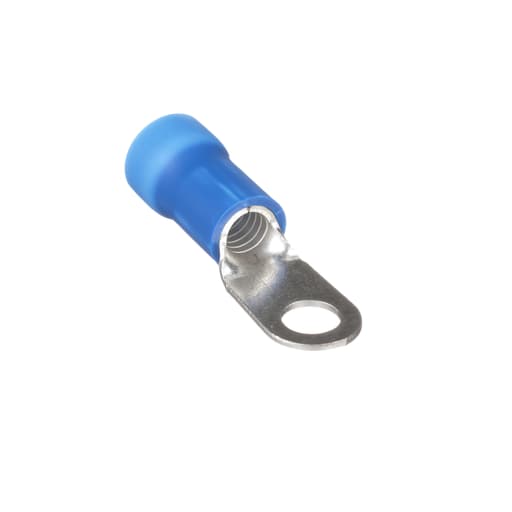

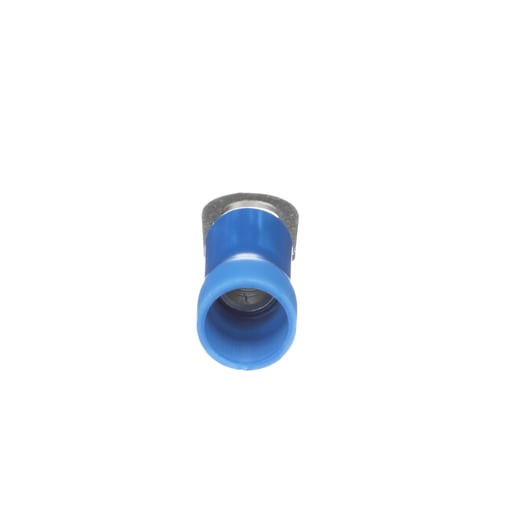

The PV6-14R-X Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. Prop 65: No - Standards and Certifications: Standards Met: cULus Listed 587H E52164, CSA Certified LR31212
