Panduit Corp - Panduit SCS4-L Standard Barrel Copper Compression Butt Splice
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983903108
Buy American - Y
Catalog Number - SCS4-L
Color - Gray
Conductor Size - 4-3 AWG/2 AWG
Packaging
1 ea
EAN
00074983903108
Part #
103844
Catalog #
SCS4-L
Commercial reference
SCS4-L
12-Digit UPC:
074983903108
Buy American:
Y
Catalog Number:
SCS4-L
Color:
Gray
Conductor Size:
4-3 AWG/2 AWG
Country of Origin:
Mexico
ERP_productname:
PAND SCS4-L 4AWG CABLE SPLICE
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Length:
1-3/4 Inch
Material:
Copper
Overall Length:
1.75 in
Size:
#4 - #3, #2
Sub Brand:
Pan-Lug™
Type:
Standard/Short Barrel, Non-Insulated
Voltage:
35 kV
SoneparProductId:
SKU_US_26572781

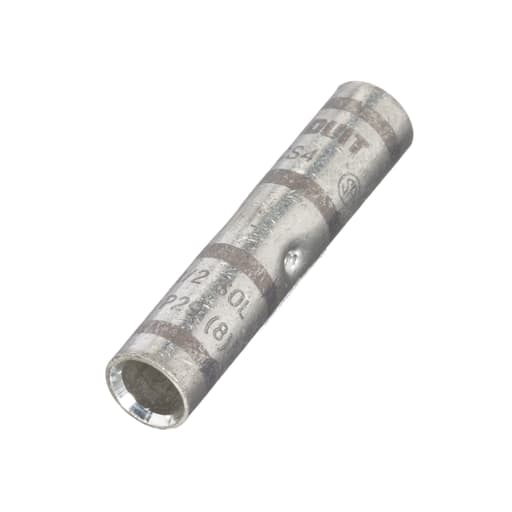

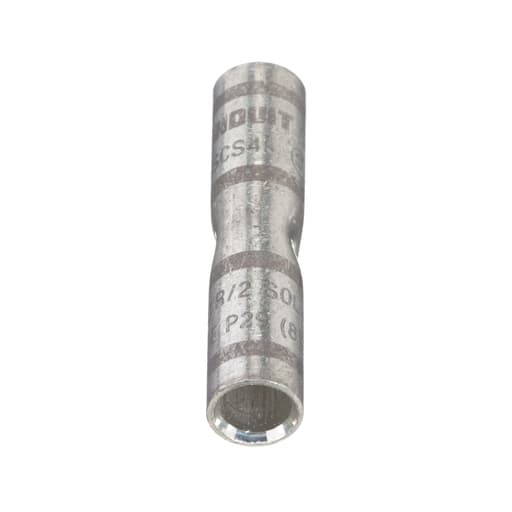

Copper butt splice, standard barrel, #4 . #3 AWG STR, #2 AWG SOL wire. Standards and Certifications: Standards Met: UL Listed and CSA Certified to 35 kV and temperature rated to 90±C - Prop 65: No
