Panduit Corp - Panduit SCS6-L Standard Barrel Copper Compression Butt Splice
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983903054
Buy American - Y
Catalog Number - SCS6-L
Color - Blue
Conductor Size - 6 AWG
Packaging
1 ea
EAN
00074983903054
Part #
138616
Catalog #
SCS6L
Commercial reference
SCS6L
12-Digit UPC:
074983903054
Buy American:
Y
Catalog Number:
SCS6-L
Color:
Blue
Conductor Size:
6 AWG
Country of Origin:
Mexico
ERP_productname:
PAND SCS6L CU BUTT SPLICE
Family Brand Name:
Panduit Corp.
Finish:
Tin Plated
Material:
Copper
Overall Length:
1-3/4 in
Size:
6 - 6
Sub Brand:
Pan-Lug™
Type:
Compression Splice
Voltage:
35 kV
SoneparProductId:
SKU_US_25476308

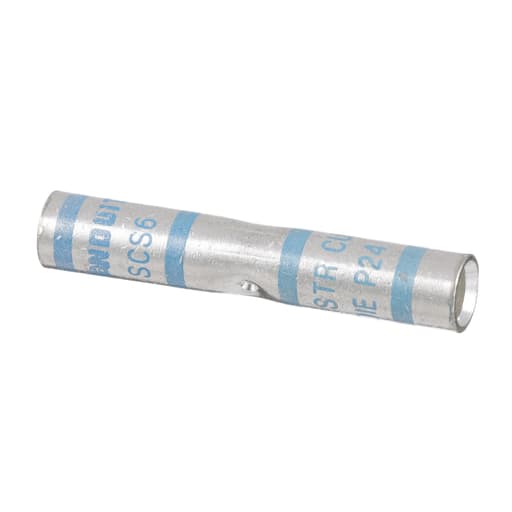

The SCS6-L Copper Compression Lug, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C. Standards and Certifications: Standards Met: UL Listed and CSA Certified to 35 kV and temperature rated to 90±C - Prop 65: No
