Panduit Corp - Panduit STP28X1MIG Cat 6A 28 AWG Shielded Patch Cord, 1m, IG
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 074983003266
Applications - Shielded
Buy American - Y
Catalog Number - STP28X1MIG
Color - Gray
Packaging
1 ea
EAN
00074983003266
Part #
212658
Catalog #
STP28X1MIG
Commercial reference
STP28X1MIG
12-Digit UPC:
074983003266
Applications:
Shielded
Buy American:
Y
Catalog Number:
STP28X1MIG
Color:
Gray
Conductor Material:
Copper
Conductor Size:
28 AWG
Country of Origin:
China,Mexico,Romania
ERP_productname:
PAND STP28X1MIG CAT 6A 28 AWG SHIELDED PATCH CORD, 1M, I
Family Brand Name:
Panduit Corp.
Length:
3.28 Inch
Overall Length:
1 m
Sub Brand:
PanNet
Type:
Category 6A
Wire Size:
28 AWG
SoneparProductId:
SKU_US_85068576

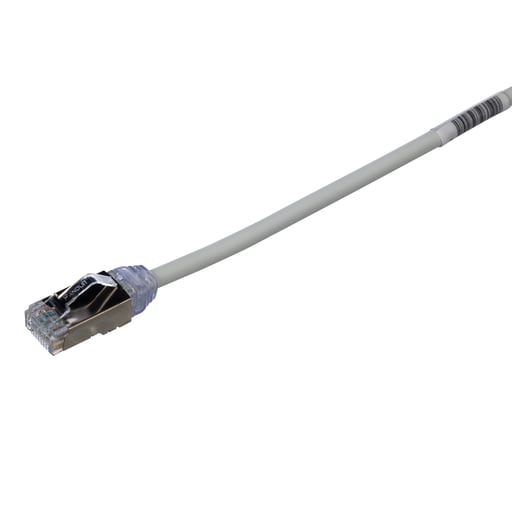

The TX6A-28™ Cat 6A Shielded Patch Cord is constructed of 28 AWG, shielded, twisted pair, solid, CM/LSZH cable with enhanced performance modular plugs. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 1 meter in length, 0.185 inches (4.7mm) nominal in diameter, and international gray. Standards and Certifications: Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
