Panduit Corp - Panduit UTPSP10Y Cat 6 24 AWG UTP Copper Patch Cord, 10 ft, IW

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983168910

  • Applications - Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T, 10GBASE-T, 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video and VoIP

  • Buy American - Y

  • Catalog Number - UTPSP10Y

  • Color - Off-White

Packaging

  • 1 ea

EAN

00074983168910

Part #

167149

Catalog #

UTPSP10Y

Commercial reference

UTPSP10Y

12-Digit UPC:

074983168910

Applications:

Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T, 10GBASE-T, 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video and VoIP

Buy American:

Y

Catalog Number:

UTPSP10Y

Color:

Off-White

Conductor Material:

Copper

Conductor Size:

24 AWG

Country of Origin:

China,Costa Rica,Romania

ERP_productname:

PAND UTPSP10Y CAT6 UTP PATCH CORD 10FT OFF-WHITE

Family Brand Name:

Panduit Corp.

Length:

10 Foot

Material:

Copper

Overall Length:

10 ft

Sub Brand:

PanNet

Type:

Category 6

Wire Size:

24 in

SoneparProductId:

SKU_US_29688787

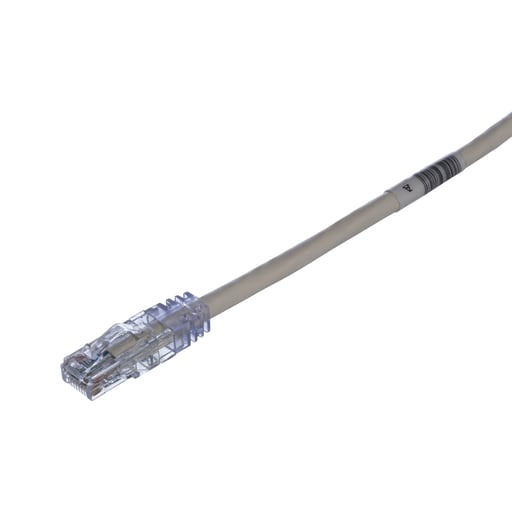

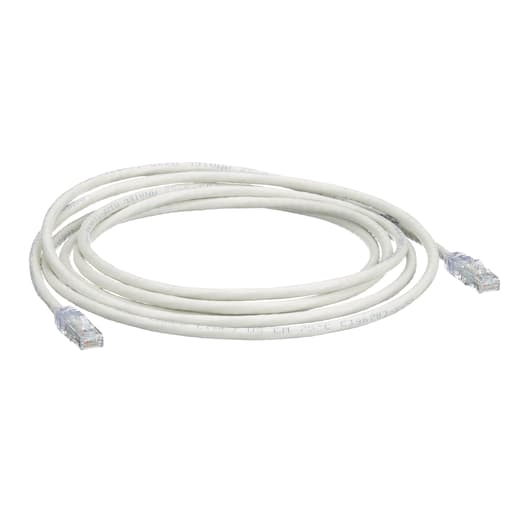

The TX6™ PLUS Cat 6 UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord.s slender strain relief boot provides easy access in high-density applications. The patch cord is 10 feet in length and off white. Prop 65: No - Standards and Certifications: Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all channel and component frequencies up to 500 MHz; Meets ANSI/TIA-1096-A requirements; Meets IEC 60603-7; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; UL 1863; RoHS Compliant
