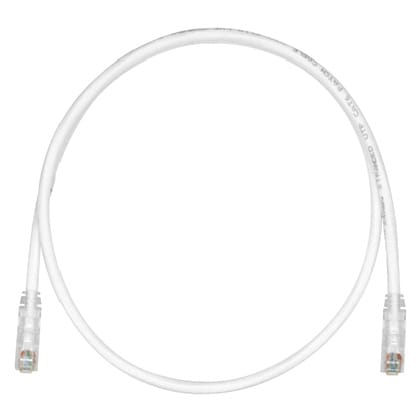

Panduit Corp - Panduit UTPSP6Y Cat 6 24 AWG UTP Copper Patch Cord, 6 ft, White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983171156

  • Applications - Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T, 10GBASE-T, 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video and VoIP

  • Buy American - Y

  • Catalog Number - UTPSP6Y

  • Color - Off-White

Packaging

  • 1 ea

EAN

00074983171156

Part #

277159

Catalog #

UTPSP6Y

Commercial reference

UTPSP6Y

12-Digit UPC:

074983171156

Applications:

Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T, 10GBASE-T, 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video and VoIP

Buy American:

Y

Catalog Number:

UTPSP6Y

Color:

Off-White

Conductor Material:

Copper

Conductor Size:

24 AWG

Country of Origin:

China,Mexico,Romania

ERP_productname:

PAND UTPSP6Y CAT 6 24 AWG UTP COPPER PATCH CORD, 6 FT

Family Brand Name:

Panduit Corp.

Length:

6 Inch

Material:

Copper

Overall Length:

6 ft

Sub Brand:

PanNet

Type:

Category 6

Wire Size:

24 AWG

SoneparProductId:

SKU_US_29475933

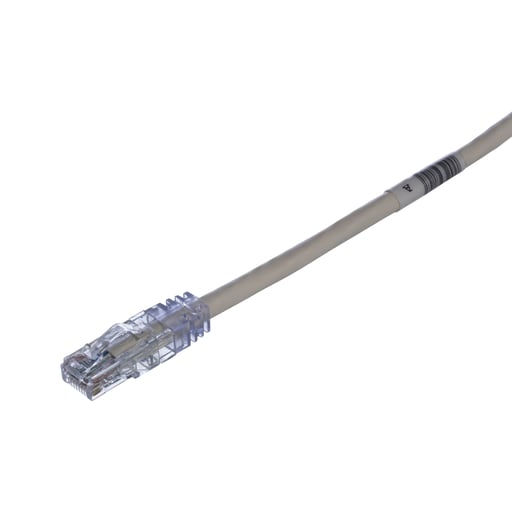

The TX6™ PLUS Cat 6 UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord.s slender strain relief boot provides easy access in high-density applications. The patch cord is 6 feet in length and off white. Prop 65: No - Standards and Certifications: Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
