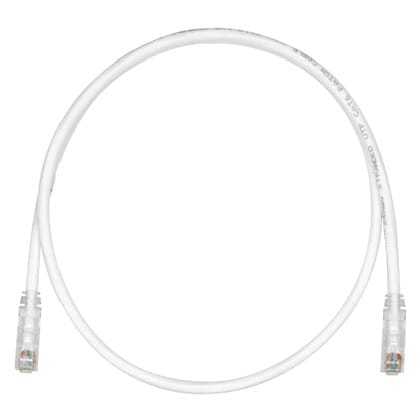

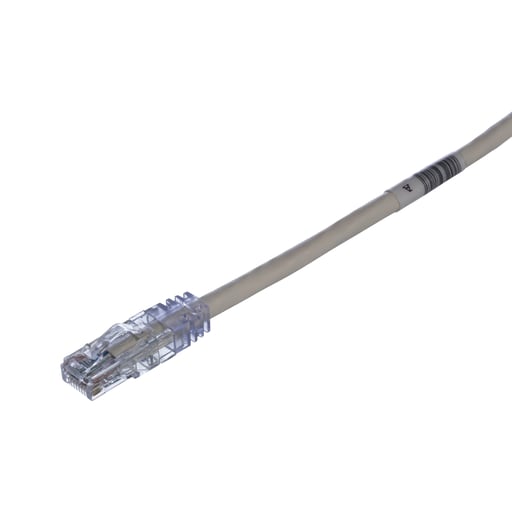

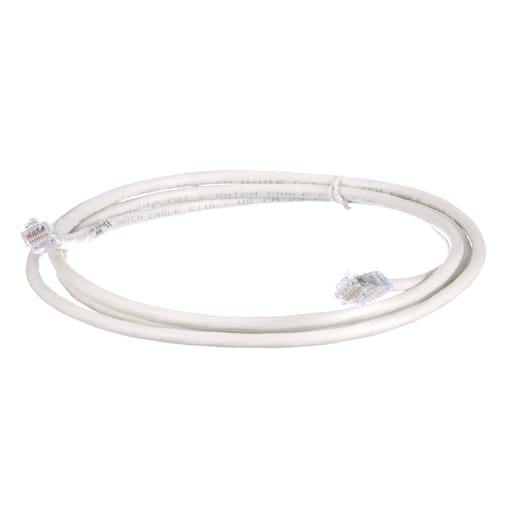

Panduit Corp - Panduit UTPSP7Y Cat 6 24 AWG UTP Copper Patch Cord, 7 ft, IW

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 074983171279

  • Applications - For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T, 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16

  • Buy American - Y

  • Catalog Number - UTPSP7Y

  • Color - Off-White

Packaging

  • 1 ea

EAN

00074983171279

Part #

169392

Catalog #

UTPSP7Y

Commercial reference

UTPSP7Y

12-Digit UPC:

074983171279

Applications:

For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T, 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16

Buy American:

Y

Catalog Number:

UTPSP7Y

Color:

Off-White

Conductor Material:

Copper

Conductor Size:

24 AWG

Country of Origin:

China,Costa Rica,Romania

ERP_productname:

PAND UTPSP7Y CAT6 UTP PATCH CORD 7FT OFF-WHITE

Family Brand Name:

Panduit Corp.

Length:

7

Material:

Copper

Overall Length:

7 ft

Sub Brand:

PanNet

Type:

Category 6

Wire Size:

24 AWG

SoneparProductId:

SKU_US_29690827

The TX6™ PLUS Cat 6 UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, stranded, CM cable with enhanced performance modular plugs. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord.s slender strain relief boot provides easy access in high-density applications. The patch cord is 7 feet in length and off white. Standards and Certifications: Standards Met: Exceeds all ANSI/TIA-568.2-D and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863, Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant - Prop 65: No
