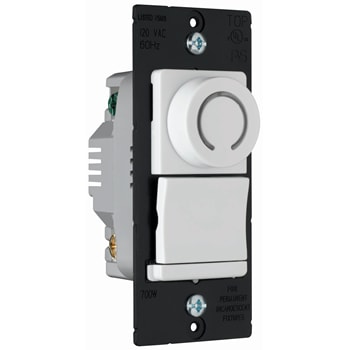

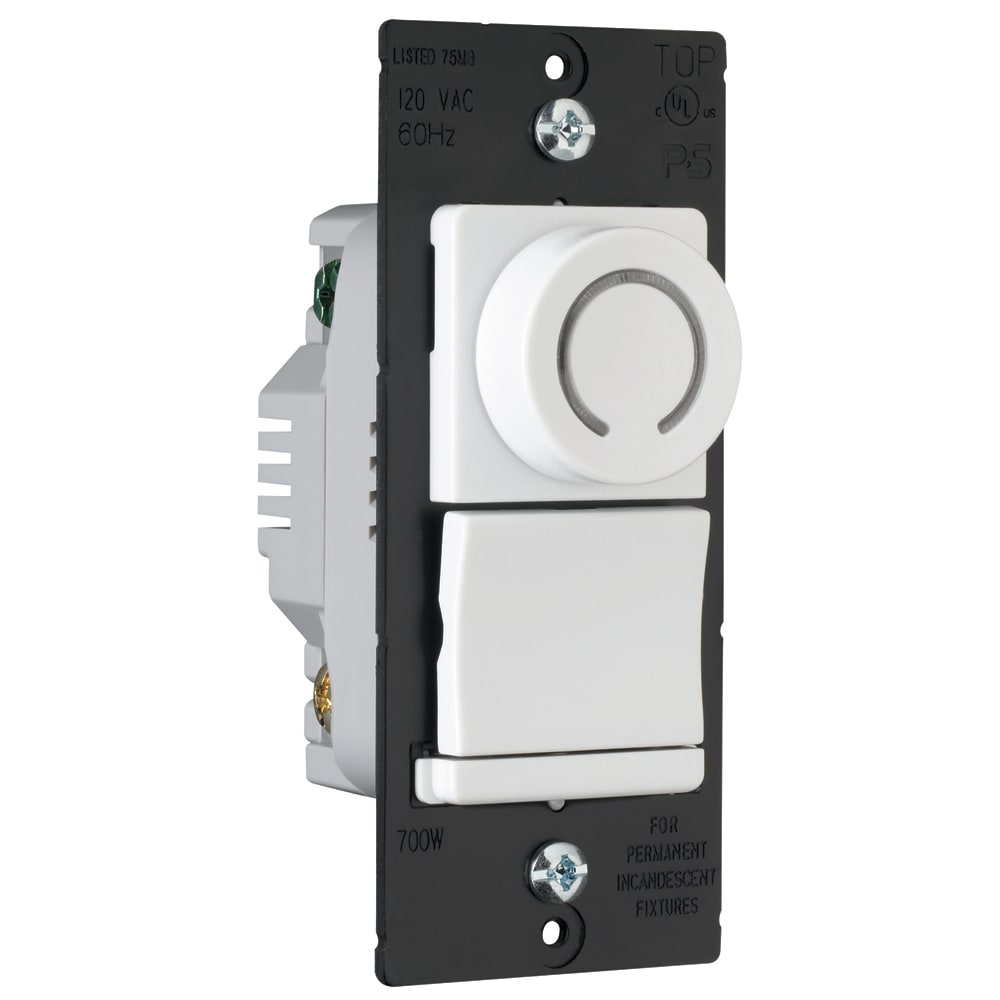

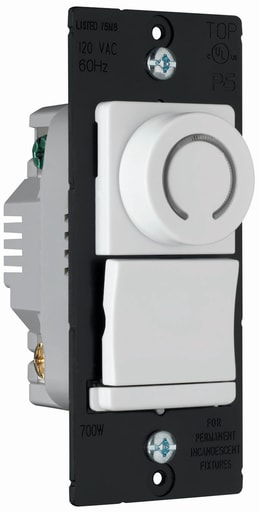

Pass & Seymour / Legrand - 700W 3W DECOR ROTARY W/PILOT L WHT

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007705447

  • Actuator - Knob

  • Applications - For Residential use

  • Catalog Number - DR703PWV

  • Color - White

Packaging

  • 1 ea

EAN

00785007705447

Part #

232099

Catalog #

DR703P-WV

Commercial reference

DR703P-WV

12-Digit UPC:

785007705447

Actuator:

Knob

Applications:

For Residential use

Catalog Number:

DR703PWV

Color:

White

Country of Origin:

China

Depths:

1.28 Inch

ERP_productname:

PASS DR703P-WV 700W 3W DECOR ROTARY W/PILOT L WHT

Family Brand Name:

Pass & Seymour

Heights:

4.185 Inch

Material:

Thermoplastic

Number of Poles:

1 Pole

Size:

4.25"

Sub Brand:

Pass & Seymour

Type:

Decorator, Rotary, Variable Position Knob

Voltage:

120 Volt

Wattage:

700 Watt

Widths:

1.74 in

SoneparProductId:

SKU_US_72199773

Preset Decorator Rotary Dimmer, Single Pole/3-way/700W with pilot light, White Features: A new style that matches P&S Decorator Combination devices.; Accepts Snap-In Light Module (sold separately) to convert decorator rotary devices into illuminated-type in moments; makes devices easy to find in the dark.; Screw-pressure-plate backwiring speeds installation and ensures solid, high-quality electrical connections. Also supports traditional, wire-loop side wiring.; Heavy-gauge black anodized aluminum strap provides superior heat management and structural strength for mounting against wall surfaces.; Slim design leaves more room in the box and makes installation faster and easier.; Higher ratings of 700 and 1100 watts.; No de-rating of 700 watt devices.; Single pole and 3-way in same device.; For covering patents, see www.legrand.us/patents. - Eco-Benefit Information: RoHS Compliant; LEED Contribution: Yes
