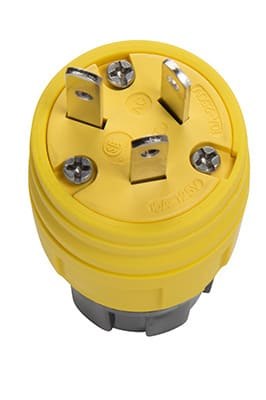

Pass & Seymour / Legrand - P&S 14W07 STR BLD PLG IP67 15A/10A

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007032956

  • Amperage - 10 Amp

  • Applications - Commercial

  • Buy American - Y

  • Catalog Number - 14W07

Packaging

  • 1 ea

EAN

00785007032956

Part #

247049

Catalog #

14W07

Commercial reference

14W07

12-Digit UPC:

785007032956

Amperage:

10 Amp

Applications:

Commercial

Buy American:

Y

Catalog Number:

14W07

Color:

Yellow

Conductor Size:

18-12 AWG

Country of Origin:

USA

Depths:

2.62 Inch

ERP_productname:

PASS 14W07 STR BLD PLG IP67 15A/10A 125/250V

Enclosure:

4X,6P

Family Brand Name:

Legrand

Length:

2.68 Inch

Material:

Thermoplastic

NEMA Size:

4X,6P

Number of Phases:

1 Phase

Number of Poles:

3 Pole

Number of Wires:

3 Wire

Size:

1.63" (Height) x 1.63" (Width) x 2.68 (Depth)

Sub Brand:

Pass & Seymour

Tc Connection:

Cable

Type:

Plug

Voltage:

125 Volt

Widths:

1.85 in

Wire Size:

12 AWG

SoneparProductId:

SKU_US_71894733

Rated watertight for 1,500 psi high-pressure hosedown, Pass and Seymour plugs and connectors feature multiple seals to ensure protection against the environment. Constructed of a sturdy rubber body, which makes them impact- and chemical-resistant, they have nickel-plated blades and contacts for superior corrosion resistance. Features: Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat , and weather.; Nickel-Plated blades and contacts for long lasting, superior corrosion resistance.; Multipoint sealing system provides environmental protection of NEMA 4, 4X, 6, 6P, & IP67 rated.; Devices resist high-pressure hose down of 1,500 psi.; Color coded sealing bushings provided for large range of cord diameters; Large ribs on body for a superior grip when mating.; For covering patents, see www.legrand.us/patents.
