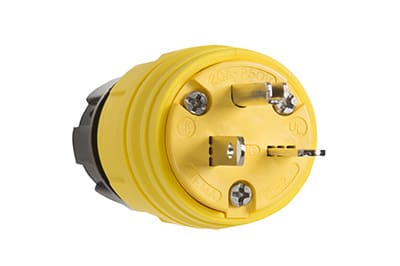

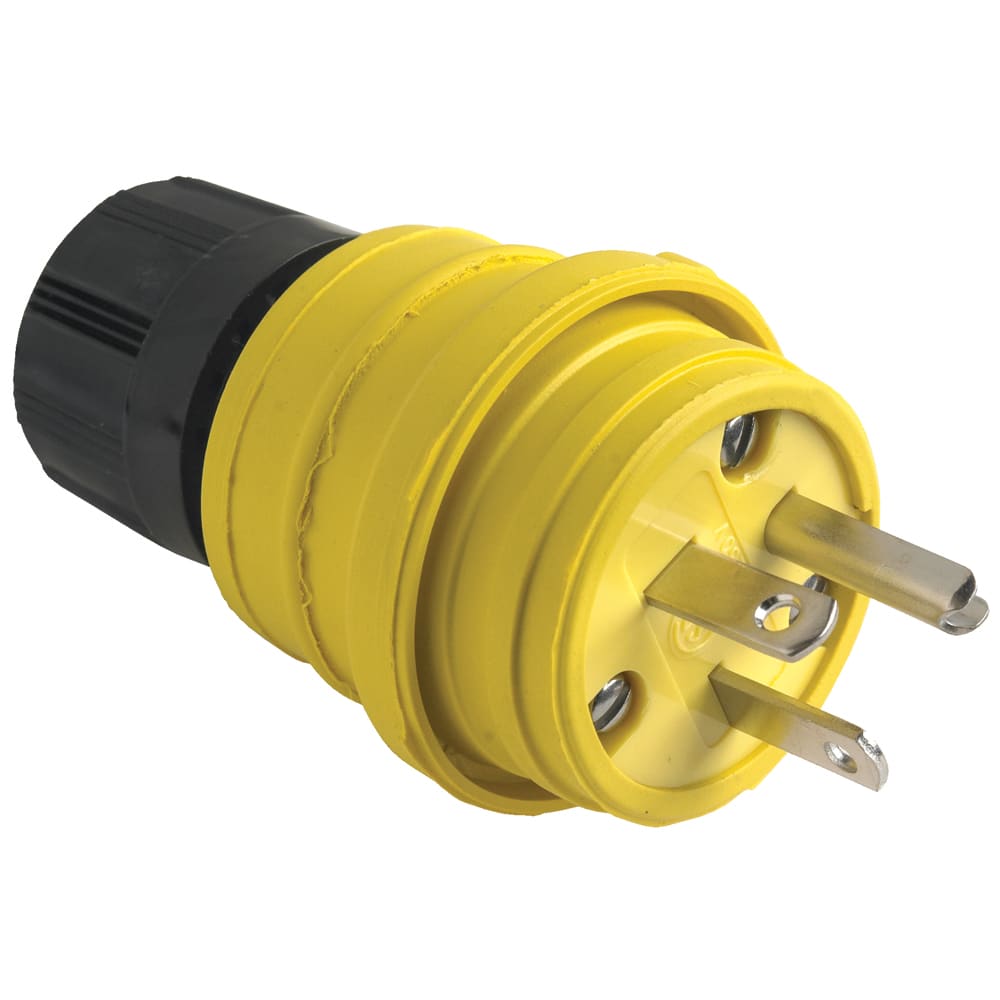

Pass & Seymour / Legrand - P&S 14W48 STR BLADE IP67 PLUG 20A 2
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007114461
Amperage - 20 Amp
Applications - Commercial
Buy American - Y
Catalog Number - 14W48
Packaging
1 ea
EAN
00785007114461
Part #
392167
Catalog #
14W48
Commercial reference
14W48
12-Digit UPC:
785007114461
Amperage:
20 Amp
Applications:
Commercial
Buy American:
Y
Catalog Number:
14W48
Color:
Yellow
Conductor Size:
14-12 AWG
Country of Origin:
USA
Depths:
2.62 Inch
ERP_productname:
PASS 14W48 STR BLADE IP67 PLUG 20A 250V 6-20P
Family Brand Name:
Legrand
Length:
2.68 Inch
Material:
Rubber
NEMA:
6-20P
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
4.75"
Sub Brand:
Pass & Seymour
Type:
Plug
Voltage:
250 Volt
Widths:
1.85 in
Wire Size:
12 AWG
SoneparProductId:
SKU_US_72032259
Rated watertight for 1,500 psi high-pressure hosedown, Pass and Seymour plugs and connectors feature multiple seals to ensure protection against the environment. Constructed of a sturdy rubber body, which makes them impact- and chemical-resistant, they have nickel-plated blades and contacts for superior corrosion resistance. Certifications: UL Listed; CSA Listed - Features: Thermoplastic elastomer (TPV) construction stands up to impacts, oils, chemicals, heat and weather.; Nickel-plated blades and contacts for long-lasting, superior corrosion resistance.; Devices resist high-pressure hose down of 1,500 psi.; Color-coded sealing bushings provided for a large range of cord diameters.; Large ribs on body for a superior grip when mating.; All black construction.; For covering patents, see www.legrand.us/patents.
