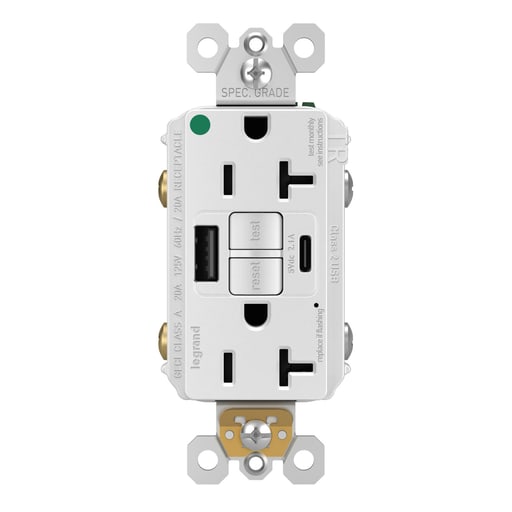

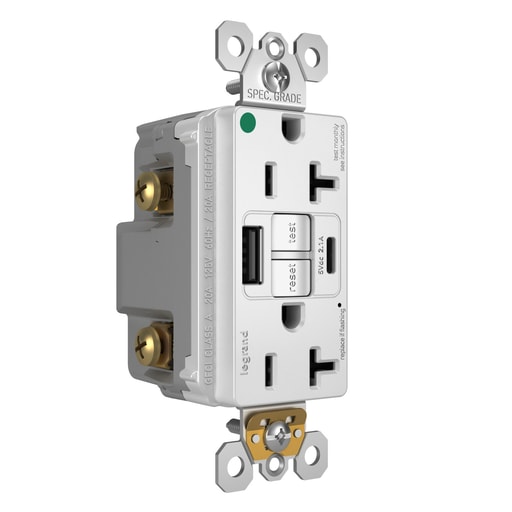

Pass & Seymour / Legrand - P&S 2097HGTRUSBACW SELFTEST GFCI RE

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007377576

  • Amperage - 20 Amp

  • Applications - Commercial,Residential

  • Catalog Number - 2097HGTRUSBACW

  • Color - White

Packaging

  • 1 ea

EAN

00785007377576

Part #

142501

Catalog #

2097HGTRUSBACW

Commercial reference

2097HGTRUSBACW

12-Digit UPC:

785007377576

Amperage:

20 Amp

Applications:

Commercial,Residential

Catalog Number:

2097HGTRUSBACW

Color:

White

Country of Origin:

China

Depths:

1.03 Inch

ERP_productname:

PASS 2097HGTRUSBACW SELFTEST GFCI RECEP HG TR 20A W/USB AC W

Family Brand Name:

Legrand

Finish:

Matte

Heights:

4.2 Inch

Material:

Polycarbonate

Mounting Type:

Box

NEMA:

20A

Number of Gangs:

1 Gang

Sub Brand:

radiant

Type:

Duplex,GFCI,Tamper-Resistant,USB

Voltage:

125 Volt

Wattage:

1875 Watt

Widths:

1.73 in

SoneparProductId:

SKU_US_283920892

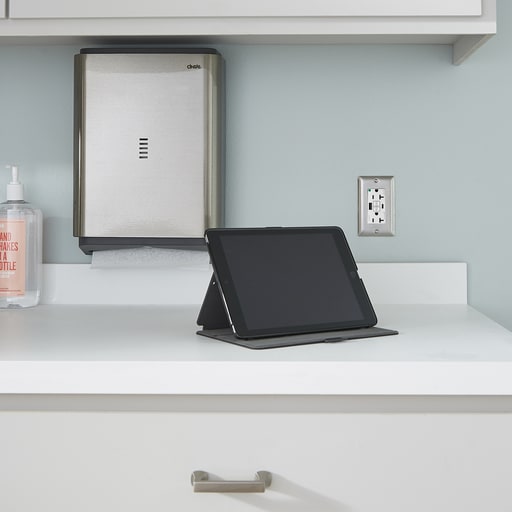

Provide superior safety and the convenience of built-in USB charging, with this first-of-its-kind outlet. Perfect for adding modern connectivity anywhere desired, even in the areas of hosptial and healthcare facilities where ground fault protection is required. This outlet makes it easy to see and reset electrical trips right where they happen, while also providing two USB connections for keeping phones or tablets charged, no bulky adapter necessary.Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Certifications: RoHS Compliant; cULus Listed; CSA Listed; UL Listed - Features: First outlet of its kind to add USB connection to a GFCI outlet for easier charging, anywhere; Rated for use in hospitals and healthcare facilities, this outlet offers superior durability and reliable ground fault protection. Includes a trip indicator light and reset button on the outlet for easy, accessible troubleshooting; Includes traditional power outlets, as well as one USB Type-A and one USB Type-C port for convenient charging. Shares 2.0A charging capacity between both ports; Self-tests every three seconds, ensuring continuous ground fault protection for greater safety. Additionally, in case of test failure, the indicator light (red LED) will flash to signal there is an issue and the outlet should be replaced; Equipped with proven SafeLock™ feature which disconnects power to the outlet if any critical components are damaged for added protection; Prevents the insertion of foreign objects while maintaining a discreet, invisible effect with patented, black \"\"invisi-shutter\"\" system. Meets NEC® Tamper-Resistant requirements; Installs quickly thanks to a redesigned side wire cavity for easier access; Can provide ground fault protection to downstream outlets through feed-thru wiring; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
