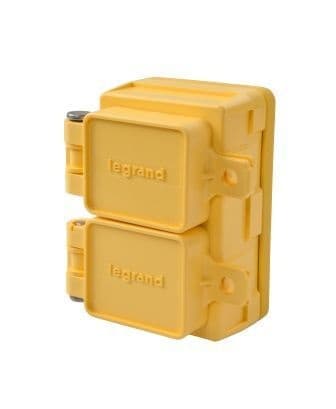

Pass & Seymour / Legrand - P&S 60W33DPLX RECEPTACLE DUPLEX IP6

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007108910

  • Amperage - 20 Amp

  • Applications - Commercial

  • Buy American - Y

  • Catalog Number - 60W33DPLX

Packaging

  • 1 ea

EAN

00785007108910

Part #

347333

Catalog #

60-W33DPLX

Commercial reference

60-W33DPLX

12-Digit UPC:

785007108910

Amperage:

20 Amp

Applications:

Commercial

Buy American:

Y

Catalog Number:

60W33DPLX

Color:

Black

Conductor Size:

14-10 AWG

Country of Origin:

USA

ERP_productname:

PASS 60-W33DPLX RECEPTACLE DUPLEX IP67 20A 125V 5-20R

Family Brand Name:

Legrand

Finish:

Matte

Length:

1-1/4 Inch

Material:

Thermoplastic

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Sub Brand:

Pass & Seymour

Tc Connection:

Screw terminals

Type:

Receptacles

Voltage:

125 Volt

Wire Size:

10 AWG

SoneparProductId:

SKU_US_71898899

Pass and Seymour watertight receptacles feature impact-resistant Valox lids, cover plates and receptacle bodies that withstand impacts, chemical and corrosion. Ideal for the harsh environments typically found in food & beverage processing plants, petrochemical plants, marinas & shipbuilding locations, mining locations, mills and more. Features: Impact-resistant Valox lid, cover plate and receptacle body withstand impacts, chemicals and corrosion.; One-piece heat-treated triple-wipe brass power contacts.; Stainless-steel hinge spring and pin ensure corrosion resistance.; Lockout/tagout capability.; For covering patents, see www.legrand.us/patents.; Dielectric Strength, Connectors: 2000V AC if rated 300V or less, 3000V AC if rated above 300V. Plugs: 2500V AC if rated 300V or less, 3500V AC if rated above 300V.; Wire Size: #14 - #10 AWG Copper Conductor Only - Certifications: cULus Listed
