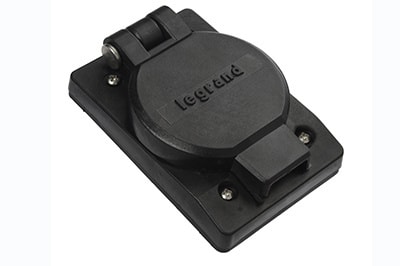

Pass & Seymour / Legrand - P&S 69W76BK SNG REC IP67 30A 3PH 48

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007040678

  • Amperage - 30 Amp

  • Applications - Commercial

  • Buy American - Y

  • Catalog Number - 69W76BK

Packaging

  • 1 ea

EAN

00785007040678

Part #

293555

Catalog #

69-W76BK

Commercial reference

69-W76BK

12-Digit UPC:

785007040678

Amperage:

30 Amp

Applications:

Commercial

Buy American:

Y

Catalog Number:

69W76BK

Color:

Black

Conductor Size:

14-10 AWG

Country of Origin:

USA

Depths:

4.03 Inch

ERP_productname:

PASS 69-W76BK SNG REC IP67 30A 3PH 480V L1630R BK

Family Brand Name:

Legrand

Heights:

1.85 Inch

Length:

1-1/4 Inch

Material:

Thermoplastic

NEMA:

L16-30R

Number of Phases:

3 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Sub Brand:

Pass & Seymour

Tc Connection:

Screw terminals

Type:

Receptacles

Voltage:

480 Volt

Widths:

1.85 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_71899203

Pass and Seymour Turnlok watertight receptacles feature impact-resistant Valox lids, cover plates and receptacle bodies that withstand impacts, chemical and corrosion. Ideal for the harsh environments typically found in food and beverage processing plants, petrochemical plants, marinas and ship building locations, mining locations, mills and more. Features: Impact-resistant Valox lid, cover plate and receptacle body withstand impacts, chemicals and corrosion.; Spring-loaded flip cover provides protection when device is not in use.; Stainless-steel hinge spring and pin ensure corrosion resistance.; For covering patents, see www.legrand.us/patents.; Dielectric Strength, Connectors: 2000V AC if rated 300V or less, 3000V AC if rated above 300V. Plugs: 2500V AC if rated 300V or less, 3500V AC if rated above 300V.; Wire Size: #14 - #10 AWG Copper Conductor Only - Certifications: UL Listed; CSA Listed
