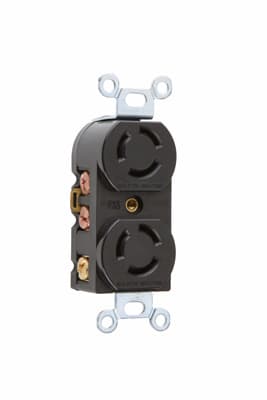

Pass & Seymour / Legrand - P&S 7580 R DUP 15A 125V 10A 250V T/
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007758009
Amperage - 10 Amp
Applications - Industrial
Catalog Number - 7580
Color - Black
Packaging
1 ea
EAN
00785007758009
Part #
250042
Catalog #
7580
Commercial reference
7580
12-Digit UPC:
785007758009
Amperage:
10 Amp
Applications:
Industrial
Catalog Number:
7580
Color:
Black
Country of Origin:
Mexico
Depths:
0.97 Inch
ERP_productname:
PASS 7580 R DUP 15A 125V 10A 250V T/L
Enclosure:
Non-NEMA
Family Brand Name:
Legrand
Heights:
2.635 Inch
Length:
2.3 Inch
Material:
Nylon
Number of Wires:
3 Wire
Size:
1.500 L x 1.199 W x 4.031 H In
Sub Brand:
Pass & Seymour
Type:
Duplex, Receptacles
Voltage:
125 Volt
Widths:
1.437 in
Wire Size:
Consult the Fac-ry
SoneparProductId:
SKU_US_53307545
Receptacle Duplex 15A 125V 10A 250V Turnlok® Features: Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.; Face color coding by voltage facilitates locating and mating of proper devices.; One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.; Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.; Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.; Side and external screw-pressure-plate back wire capability.; Accepts #14 - #10 AWG.
