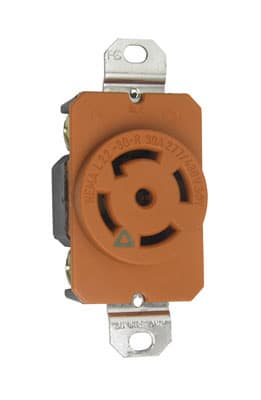

Pass & Seymour / Legrand - P&S IGL2230R TURNLOK SINGLE 4W 30A3

Turnlok® Single 4-Wire 30A 3-Phase 277/480V Isolated Ground Certifications: cULus Listed - Features: UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).; 140 joules of energy absorption in each of thethree modes.; 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.; 1 filtering capacitor for 7 to 1 average noise reduction.; Nominal let-through (suppressed) voltage inall 3 modes, 500V.; LED indicator light.; Response time less than 1 nanosecond for unmounted MOV.; Overcurrent protection in all 3 modes.; Electronic components potted for electrical, mechanical and thermal stability.; Thermal protection in all 3 modes.; Leakage current: 0.5 mA at 25: C/120VAC.; 3 18mm super MOVs to suppress transients in all modes : equally.; Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance); Varistor voltage: 150V RMS.; Back and side wire capability including ground terminal.; Operating temperature: -40: C to 85: C(-40: F to 185: F); Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
