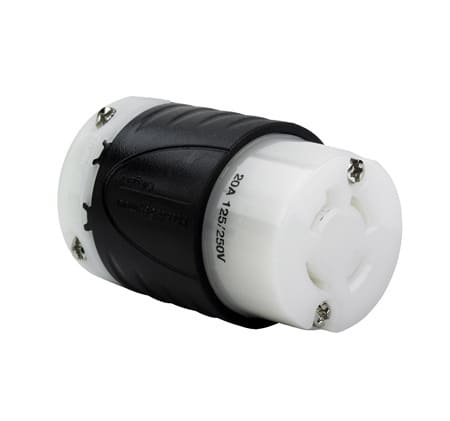

Pass & Seymour / Legrand - P&S L1420CGCM TURNLOK CONN GCM 4W 2

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007265583

  • Amperage - 20 Amp

  • Applications - Industrial

  • Catalog Number - L1420CGCM

  • Color - Black

Packaging

  • 1 ea

EAN

00785007265583

Part #

285515

Catalog #

L1420-CGCM

Commercial reference

L1420-CGCM

12-Digit UPC:

785007265583

Amperage:

20 Amp

Applications:

Industrial

Catalog Number:

L1420CGCM

Color:

Black

Country of Origin:

Mexico

ERP_productname:

PASS L1420-CGCM TURNLOK CONN GCM 4W 20A 125/250V B&W

Family Brand Name:

Legrand

Length:

2.638 Inch

Material:

Nylon

NEMA:

L14-20R

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Number of Wires:

4 Wire

Size:

5x2.5x2.4

Sub Brand:

Pass & Seymour

Type:

Connector, Ground Continuity Monitoring

Voltage:

125 Volt

Widths:

1.516 in

SoneparProductId:

SKU_US_73187296

Heavy-Duty Ground Continuity Monitoring (GCM) Connector, Black and White Features: Integral indication of ground continuity and power status. Continuous monitoring enhances personnel safety and adds convenience.; Dual, bright LED indicators with 360 degrees visibility. Green LEDs indicate proper ground continuity and power status. Red LEDs indicate ground continuity loss or reversed polarity. No LED indicates open hot, open neutral, or hot to ground cross.; For 250V configurations: Hot to ground cross will be indicated by a green and red LED.; NEMA configurations always visible for fast identification without disconnecting.; Exclusive neoprene dust shield on devices seals cable entry. Optional weatherproof boots (sold separately).; Chemical- and impact-resistant nylon housing features horizontal, easy-grip ribs on back body.; Exclusive, rugged two-piece cord grip (15 Amp only) accepts a wide range of cord widths. Provides uniform pressure for superior retention of conductors.; Recessed cord-grip screw reduces screwdriver slippage, improves safety. Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire.; Color-coded terminal screws are backed-out for fast installation.; Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity. - Certifications: cULus Listed; Federal Spec Listed
