Pass & Seymour / Legrand - P&S L1920R R SGL 4W 20A 277/480V T/

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007192056

  • Amperage - 20 Amp

  • Applications - Commercial

  • Catalog Number - L1920R

  • Color - Black

Packaging

  • 1 ea

EAN

00785007192056

Part #

122886

Catalog #

L1920-R

Commercial reference

L1920-R

12-Digit UPC:

785007192056

Amperage:

20 Amp

Applications:

Commercial

Catalog Number:

L1920R

Color:

Black

Conductor Size:

18-10 AWG

Country of Origin:

Mexico

Depths:

1.19 Inch

ERP_productname:

PASS L1920-R R SGL 4W 20A 277/480V T/L

Family Brand Name:

Legrand

Heights:

2.29 Inch

Material:

Thermoplastic

NEMA:

L19-20R

Number of Phases:

3 Phase

Number of Poles:

4 Pole

Number of Wires:

4 Wire

Size:

3.3"

Sub Brand:

Pass & Seymour

Type:

Single Receptacles

Voltage:

277 Volt

Widths:

1.61 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_52783063

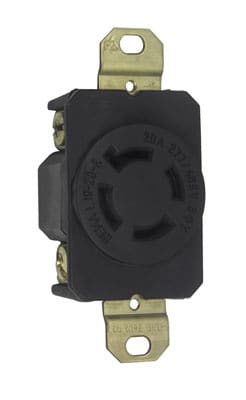

Receptacle Single 4-Wire 20A 277/480V Turnlok® Certifications: UL Listed - Features: Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.; Face color coding by voltage facilitates locating and mating of proper devices.; One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.; Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.; Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.; Side and external screw-pressure-plate back wire capability.; Accepts #14 - #10 AWG.
