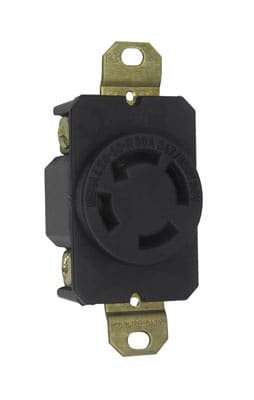

Pass & Seymour / Legrand - P&S L2030R R SGL 4W30A347/600V T/L
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007203073
Amperage - 30 Amp
Applications - Commercial
Catalog Number - L2030R
Color - Black
Packaging
1 ea
EAN
00785007203073
Part #
103853
Catalog #
L2030-R
Commercial reference
L2030-R
12-Digit UPC:
785007203073
Amperage:
30 Amp
Applications:
Commercial
Catalog Number:
L2030R
Color:
Black
Conductor Size:
18-10 AWG
Country of Origin:
Mexico
Depths:
1.28 Inch
ERP_productname:
PASS L2030-R R SGL 4W30A347/600V T/L
Family Brand Name:
Legrand
Heights:
2.37 Inch
Material:
Thermoplastic
NEMA:
L20-30R
Number of Phases:
3 Phase
Number of Poles:
4 Pole
Number of Wires:
4 Wire
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Single Receptacles
Voltage:
600 Volt
Widths:
1.61 in
Wire Size:
10 AWG
SoneparProductId:
SKU_US_58079016
Receptacle Single 4-Wire 30A 347/600V Turnlok® Features: Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.; Face color coding by voltage facilitates locating and mating of proper devices.; One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.; Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.; Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.; Side and external screw-pressure-plate back wire capability.; Accepts #14 - #10 AWG. - Certifications: cULus Listed
