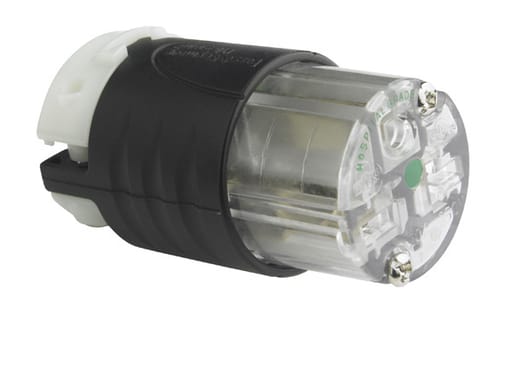

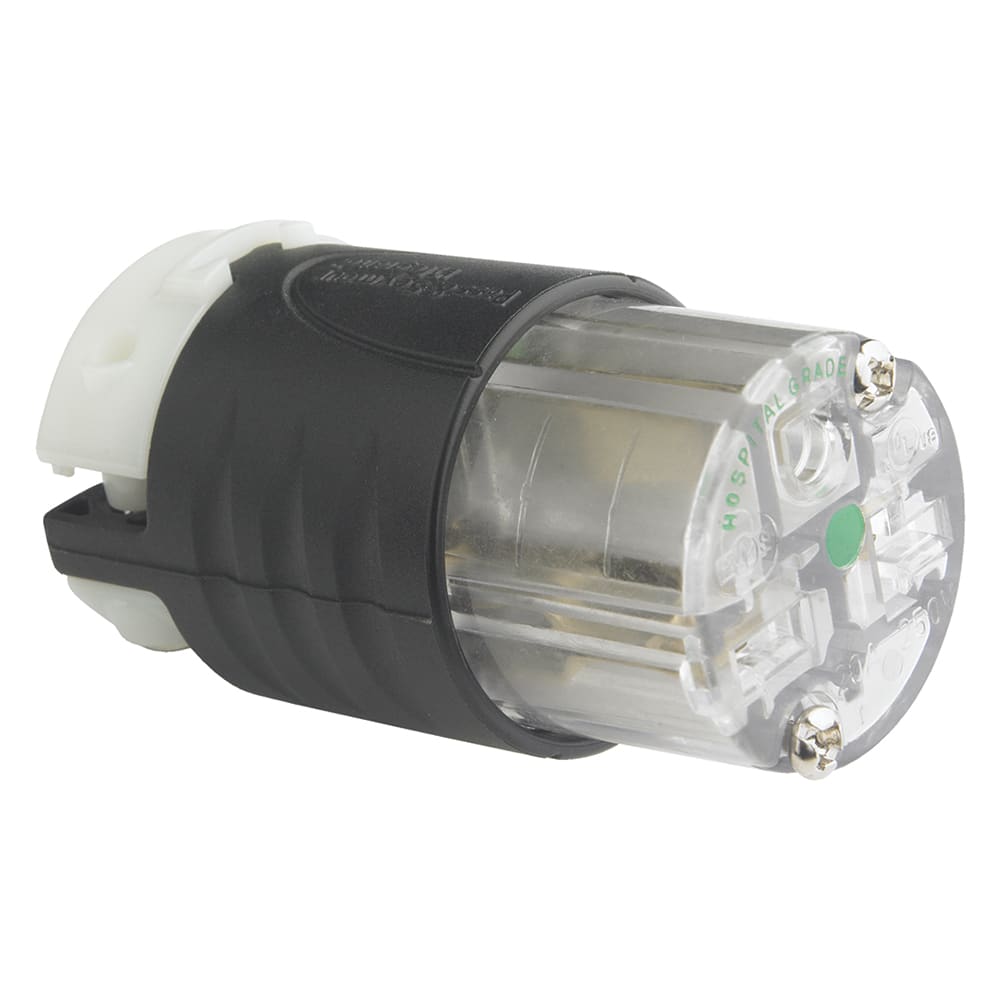

Pass & Seymour / Legrand - P&S PS5469XHG STR BLD CONN 3W 20A 2
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007236835
Amperage - 20 Amp
Applications - Commercial
Catalog Number - PS5469XHG
Color - Black
Packaging
1 ea
EAN
00785007236835
Part #
403773
Catalog #
PS5469-XHG
Commercial reference
PS5469-XHG
12-Digit UPC:
785007236835
Amperage:
20 Amp
Applications:
Commercial
Catalog Number:
PS5469XHG
Color:
Black
Conductor Size:
18-10 AWG
Country of Origin:
Mexico
Depths:
2.638 Inch
ERP_productname:
PASS PS5469-XHG STR BLD CONN 3W 20A 250V HG
Family Brand Name:
Legrand
Grade:
Hospital
Heights:
1.516 Inch
Material:
Nylon
NEMA:
6-20R
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Size:
2.2"
Sub Brand:
Pass & Seymour
Type:
Straight Blade
Voltage:
250 Volt
Widths:
1.516 in
Wire Size:
10 AWG
SoneparProductId:
SKU_US_52411196
Straight Blade Connector 2-Pole 3-Wire 20A 250V Hospital Grade Features: Unit arrives completely ready-to-wire, cuts installation time significantly.; Nylon housing provides impact and chemical resistance.; Rugged two-piece cord grip provides more uniform cord retention.; Internal dust shield keeps terminals free of contaminants.; Tri-drive assembly screws are standard on Hospital Grade plugs and connectors (angle plugs not included).; All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.; Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.; Cord-grip screws recessed to protect installer against screwdriver head slippage.; For covering patents, see www.legrand.us/patents. - Certifications: Federal Spec Listed; cULus Listed
