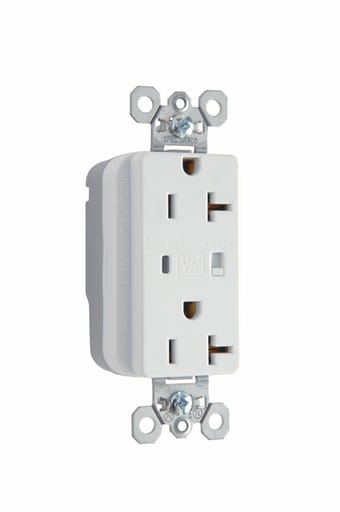

Pass & Seymour / Legrand - P&S PT5362WSP PT SPD RECP 20A/125V

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007020298

  • Amperage - 20 Amp

  • Applications - Commercial,Residential

  • Catalog Number - PT5362WSP

  • Class - IG

Packaging

  • 1 ea

EAN

00785007020298

Part #

314091

Catalog #

PT5362-WSP

Commercial reference

PT5362-WSP

12-Digit UPC:

785007020298

Amperage:

20 Amp

Applications:

Commercial,Residential

Catalog Number:

PT5362WSP

Class:

IG

Color:

White

Country of Origin:

China

Depths:

1.2 Inch

ERP_productname:

PASS PT5362-WSP PT SPD RECP 20A/125V ALARM WH

Family Brand Name:

Legrand

Grade:

Specification

Heights:

2-3/4 Inch

Material:

Thermoplastic

NEMA:

5-20R

Number of Phases:

1 Phase

Size:

.94" Depth x 1.75" Width x 3.82" Height

Sub Brand:

Pass & Seymour

Tc Connection:

Built-In Connector

Type:

Duplex

Voltage:

125 Volt

Widths:

1.7 in

SoneparProductId:

SKU_US_52604024

PlugTail information, visit our PlugTail Headquarters. Certifications: cULus Listed - Features: .036 inch thick, brass, triple-wipe power contacts for lasting retention.; Plated steel wrap strap design for maximum durability and corrosion resistance.; No exposed terminals create a finger safe application before, during, and after installation.; Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.; Crimped and welded contacts.; Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.; Large brass contacts snugly terminate on device blade terminals.; Pre-stripped connector leads fasten to conductors, easier than standard pigtails.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.
