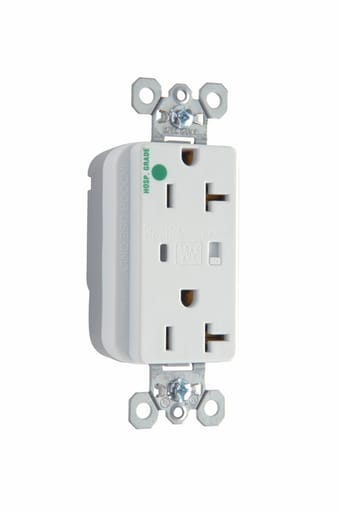

Pass & Seymour / Legrand - P&S PT8300WSP PT HG SPD RECP 20A/12

CopyCopy
Pass & Seymour / Legrand - P&S PT8300WSP PT HG SPD RECP 20A/12

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007020977

  • Amperage - 20 Amp

  • Applications - Commercial,Residential

  • Catalog Number - PT8300WSP

  • Class - IG

Packaging

  • 1 ea

EAN

00785007020977

Part #

102170

Catalog #

PT8300-WSP

Commercial reference

PT8300-WSP

12-Digit UPC:

785007020977

Amperage:

20 Amp

Applications:

Commercial,Residential

Catalog Number:

PT8300WSP

Class:

IG

Color:

White

Country of Origin:

China

Depths:

1.2 Inch

ERP_productname:

PASS PT8300-WSP PT HG SPD RECP 20A/125V ALARM WH

Family Brand Name:

Legrand

Grade:

Hospital,Specification

Heights:

3-3/4 Inch

Material:

Thermoplastic

NEMA:

5-20R

Number of Phases:

1 Phase

Size:

.94" Depth x 1.75" Width x 3.82" Height

Sub Brand:

Pass & Seymour

Tc Connection:

Built-In Connector

Type:

Duplex

Voltage:

125 Volt

Widths:

1.70 in

SoneparProductId:

SKU_US_52820715

PlugTail information, visit our PlugTail Headquarters. Certifications: cULus Listed - Features: .036 inch thick, brass, triple-wipe power contacts for lasting retention.; Plated steel wrap strap design for maximum durability and corrosion resistance.; No exposed terminals create a finger safe application before, during, and after installation.; Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.; Crimped and welded contacts.; Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.; Large brass contacts snugly terminate on device blade terminals.; Pre-stripped connector leads fasten to conductors, easier than standard pigtails.; Auto-ground clip assures positive ground.; For covering patents, see www.legrand.us/patents.
