Pass & Seymour / Legrand - P&S PTTR20ACUSBGRY PLUGTAIL 20A HYB

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007113273

  • Amperage - 20 Amp

  • Catalog Number - PTTR20ACUSBGRY

  • Color - Gray

  • Country of Origin - China

Packaging

  • 1 ea

EAN

00785007113273

Part #

316344

Catalog #

PTTR20ACUSBGRY

Commercial reference

PTTR20ACUSBGRY

12-Digit UPC:

785007113273

Amperage:

20 Amp

Catalog Number:

PTTR20ACUSBGRY

Color:

Gray

Country of Origin:

China

Depths:

1.45 Inch

ERP_productname:

PASS PTTR20ACUSBGRY PLUGTAIL 20A HYBRID AC USB DUPLEX GRY

Family Brand Name:

Legrand

Finish:

Matte

Heights:

2.677 Inch

Material:

Thermoplastic

NEMA:

5-20R

Sub Brand:

Pass & Seymour

Type:

Duplex PlugTail Receptacles

Voltage:

125 Volt

Widths:

1.693 in

SoneparProductId:

SKU_US_52254096

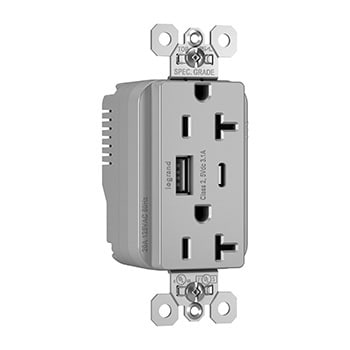

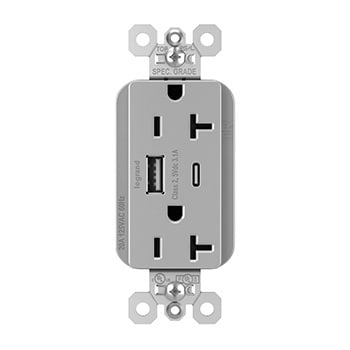

PlugTail® Commercial Specification Grade USB Charging Receptacles provide the convenience of mobile charging without the need for a bulky AC adapter. This device is a perfect match for the constant needs of todays mobile environment and is rugged enough to withstand hard-use commercial applications. It comes equipped with two UL Fed Spec AC receptacles and two USB charging ports for mobile devices one Type-A port and one Type-C port for newer products. An efficient, 15.5W power supply provides ample power needed for charging mobile phones and tablets. The PlugTail® termination provides a more productive, secure, and safer installation and allows you to connect with the future of wiring device innovations. For detailed PlugTail® information, visit our PlugTail® Headquarters.PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle. Certifications: cULus Listed; Federal Spec Listed; UL Listed - Features: AC receptacles are tamper resistant as standard : patented shutter system prevents improper insertion of foreign objects; Plated steel wrap strap design for maximum durability and corrosion resistance.; Triple-wipe, brass line contacts for 20A commercial applications; Multiple color options available; Zinc-plated steel for corrosion resistance; 5Vdc Type-C USB port to charge USB Type-C compatible mobile devices; Stainless steel auto-ground clips assure positive ground; Available in 15 & 20A, Specification Grade and Hospital Grade configurations; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
