Pass & Seymour / Legrand - P&S PTTR20HACUSBBK PLUGTAIL 20A HG

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007113396

  • Amperage - 20 Amp

  • Catalog Number - PTTR20HACUSBBK

  • Color - Black

  • Country of Origin - China

Packaging

  • 1 ea

EAN

00785007113396

Part #

225013

Catalog #

PTTR20HACUSBBK

Commercial reference

PTTR20HACUSBBK

12-Digit UPC:

785007113396

Amperage:

20 Amp

Catalog Number:

PTTR20HACUSBBK

Color:

Black

Country of Origin:

China

Depths:

1.45 Inch

ERP_productname:

PASS PTTR20HACUSBBK PLUGTAIL 20A HG HYBRID AC USB DUPLEX BK

Family Brand Name:

Pass & Seymour

Grade:

Hospital

Heights:

2.677 Inch

Material:

Thermoplastic

NEMA:

5-20R

Sub Brand:

PlugTail®

Type:

Duplex

Voltage:

125 Volt

Widths:

1.693 in

SoneparProductId:

SKU_US_232089140

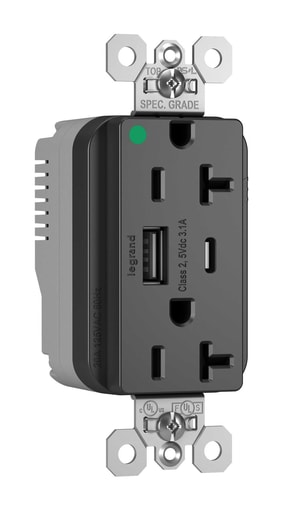

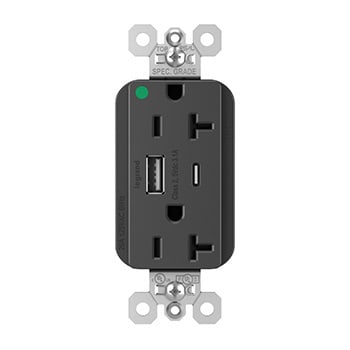

PlugTail® Hospital Grade USB Charging Receptacles provide the convenience of mobile charging without the need for a bulky AC adapter. This device is a perfect match for the constant needs of todays mobile environment and is rugged enough to withstand hard-use commercial applications. It comes equipped with two UL Fed Spec AC receptacles and two USB charging ports for mobile devices one Type-A port and one Type-C port for newer products. An efficient, 15.5W power supply provides Ale power needed for charging mobile phones and tablets. The PlugTail® termination provides a more productive, secure, and safer installation and allows you to connect with the future of wiring device innovations. For detailed PlugTail® information, visit our PlugTail® Headquarters.PlugTail® devices and connectors mean that device installation is the same regardless of skill level of the installer. The UL-Listed connectors are keyed to ensure proper wiring installation into each receptacle. Certifications: cULus Listed; UL Listed - Features: AC receptacles are tamper resistant as standard : patented shutter system prevents improper insertion of foreign objects; Extra heavy-duty 0.050'' thick brass mounting strap for superior performance and durability.; Triple-wipe, brass line contacts for 20A commercial applications; Multiple color options available; Zinc-plated steel for corrosion resistance; 5Vdc Type-C USB port to charge USB Type-C compatible mobile devices; Stainless steel auto-ground clips assure positive ground; Available in 15 & 20A, Specification Grade and Hospital Grade configurations
