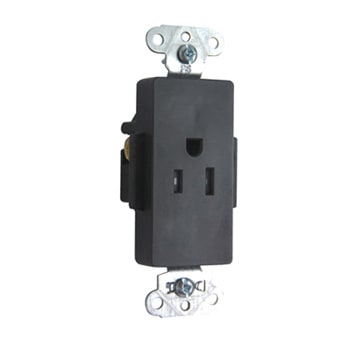

Pass & Seymour / Legrand - P&S TR26261BK DECO REC SGL TAMPER R

CopyCopy
Pass & Seymour / Legrand - P&S TR26261BK DECO REC SGL TAMPER R

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007004984

  • Amperage - 15 Amp

  • Applications - For Commercial Applications

  • Catalog Number - TR26261BK

  • Color - Black

Packaging

  • 1 ea

EAN

00785007004984

Part #

208125

Catalog #

TR26261-BK

Commercial reference

TR26261-BK

12-Digit UPC:

785007004984

Amperage:

15 Amp

Applications:

For Commercial Applications

Catalog Number:

TR26261BK

Color:

Black

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

1.188 Inch

ERP_productname:

PASS TR26261-BK DECO REC SGL TAMPER RES 15A/125V BK

Family Brand Name:

Pass & Seymour

Grade:

Specification

Heights:

2.635 Inch

Material:

Nylon

Mounting Type:

Wall

NEMA:

5-15R

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.322 L x 1.188 W x 3.813 H In

Sub Brand:

Pass & Seymour

Tc Connection:

Back and side wire

Type:

Decorator, Heavy-Duty, Tamper-Resistant

Voltage:

125 Volt

Widths:

1.322 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_52714118

Tamper-Resistant Heavy-Duty Decorator Spec Grade Single Receptacle, Back and Side-Wire, 15A, 125A Features: Dual mechanical shutter system to help prevent insertion of foreign objects.; Auto-ground clip assures positive ground.; Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.; Backed-out tri-drive brass terminal screws for faster installation.; Internal screw-pressure-plate back and side wire capability.; Two back wire holes for additional wiring flexibility.; Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.; .032 inch thick brass triple-wipe power contacts.; Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: cULus Listed
