Pass & Seymour / Legrand - P&S TR5261USBBK 15A TR SPEC GRADE W

CopyCopy
Pass & Seymour / Legrand - P&S TR5261USBBK 15A TR SPEC GRADE W

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007029079

  • Amperage - 15 Amp

  • Applications - Commercial

  • Catalog Number - TR5261USB-BK

  • Color - Black

Packaging

  • 1 ea

EAN

00785007029079

Part #

208647

Catalog #

TR5261USB-BK

Commercial reference

TR5261USB-BK

12-Digit UPC:

785007029079

Amperage:

15 Amp

Applications:

Commercial

Catalog Number:

TR5261USB-BK

Color:

Black

Conductor Size:

14-10 AWG

Country of Origin:

China

Depths:

1.31 Inch

ERP_productname:

PASS TR5261USB-BK 15A TR SPEC GRADE W/ 2.1A USB CHARG BK

Family Brand Name:

Pass & Seymour

Heights:

4.18 Inch

Material:

Thermoplastic

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.31" (D) x 1.60" (W) x 4.18" (H)

Sub Brand:

Pass & Seymour

Tc Connection:

Side & Back Wired

Type:

Tamper-Resistant USB Single Receptacle

Voltage:

125 Volt

Widths:

1.60 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_71908932

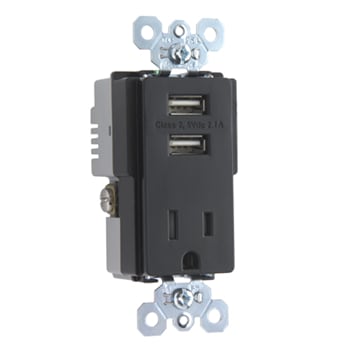

Designed for commercial markets with strength and durability in mind, this combination USB charger receptacle features 2.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page. Features: 2.1 A USB type A receptacle charges faster than other USB receptacles eliminates the need for bulky AC adapters.; Compact Design Tamper-Resistant receptacle and two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.; Back and side wire terminals accommodates #14 AWG - #10 AWG stranded and solid wire.; Tamper-Resistant, patented shutter system prevents improper insertion of foreign objects. Meets 2011 National Electrical Code® Tamper-Resistant requirements.; Stainless steel auto-ground clip assures positive ground.; Zinc-plated ground terminal screw; For covering patents, see www.legrand.us/patents. - Eco-Benefit Information: RoHS Compliant
