Pass & Seymour / Legrand - P&S TR5262USBNI DUP REC 15A TR SPEC

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007031812

  • Amperage - 15 Amp

  • Applications - Commercial

  • Catalog Number - TR5262USBNI

  • Color - Nickel

Packaging

  • 1 ea

EAN

00785007031812

Part #

239431

Catalog #

TR-5262USBNI

Commercial reference

TR-5262USBNI

12-Digit UPC:

785007031812

Amperage:

15 Amp

Applications:

Commercial

Catalog Number:

TR5262USBNI

Color:

Nickel

Conductor Size:

14-10 AWG

Country of Origin:

China

Depths:

1.392 Inch

ERP_productname:

PASS TR-5262USBNI DUP REC 15A TR SPEC W/3.1A USB CHRG NI

Family Brand Name:

Legrand

Finish:

Nickel

Heights:

2.677 Inch

Material:

Thermoplastic

NEMA:

5-15R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

1.392" (D) x 1.693" (W) x 3.281" (H)

Sub Brand:

Pass & Seymour

Tc Connection:

Side & Back Wired

Type:

Tamper-Resistant USB Duplex Receptacle

Voltage:

125 Volt

Widths:

1.693 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_52873857

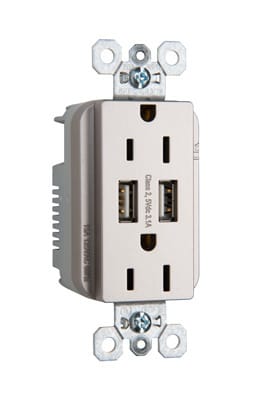

Designed for commercial markets with strength and durability in mind, this combination USB charger duplex receptacle features 3.1A overall USB charging capability and is compatible with USB 2.0 and 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page. Features: Overall 3.1A USB charging capability: Combination AC duplex receptacles include two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.; AC receptacles available in 15 and 20A, 125V.; AC receptacles are tamper-resistant as standard: patented shutter system prevents improper insertion of foreign objects.; Multiple color options available.; Back and side wire terminals accommodate #14 AWG - #10 AWG stranded and solid copper wire.; Stainless steel auto-ground clips assure positive ground.; For covering patents, see www.legrand.us/patents.; Wire Size: #14 - #10 AWG Copper Conductor Only - Certifications: cULus Listed; Federal Spec Listed; UL Listed
