Pass & Seymour / Legrand - P&S TR8201BK HG RECP SGL TR B&S WRE

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007030976

  • Amperage - 15 Amp

  • Catalog Number - TR8201BK

  • Color - Black

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785007030976

Part #

495139

Catalog #

TR8201BK

Commercial reference

TR8201BK

12-Digit UPC:

785007030976

Amperage:

15 Amp

Catalog Number:

TR8201BK

Color:

Black

Country of Origin:

Mexico

Depths:

1.093 Inch

ERP_productname:

ONQ TR8201BK HG RECP SGL TR B&S WRE 15A/125V BK

Family Brand Name:

Legrand

Grade:

Hospital

Heights:

1.68 Inch

NEMA:

5-15R

Sub Brand:

Pass & Seymour

Type:

Single Receptacles

Voltage:

125 Volt

Widths:

1.32 in

SoneparProductId:

SKU_US_53267663

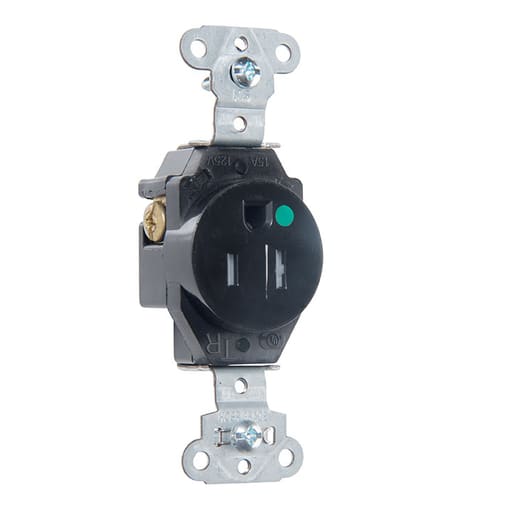

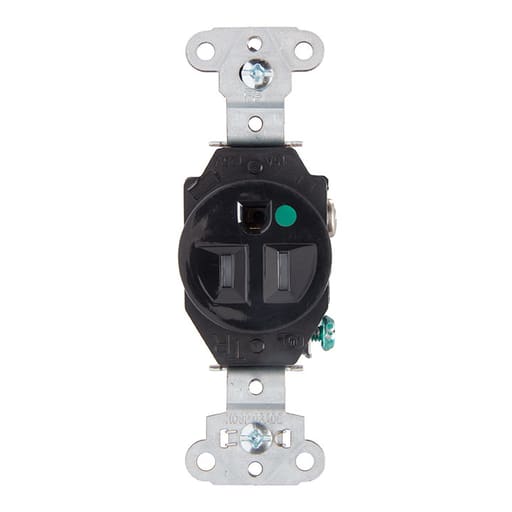

Hospital Grade Single Receptacles Tamper-Resistant, Back and Side-Wire, 15A, 125A Features: .032 inch thick, brass, triple-wipe power contacts for lasting retention.; Tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for more wiring flexibility.; Dual mechanical shutter system to help prevent insertion of foreign objects.; Heavy-duty, zinc-plated steel strap for added strength.; Strap tabs wrap around face to prevent strap from separating from face and back body.; Two drive screws anchor strap to back body and face where abrupt removal torque is strongest.; Auto-ground eliminates the necessity to terminate grounding conductor to device; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: Federal Spec Listed; cULus Listed
