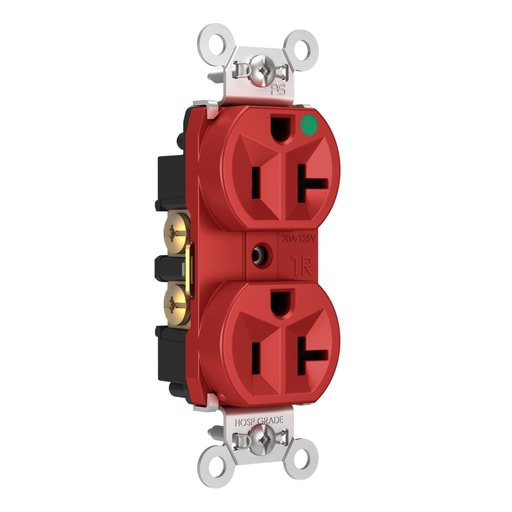

Pass & Seymour / Legrand - P&S TR8300HRED TR COMPCT HG DUP REC

CopyCopy
Pass & Seymour / Legrand - P&S TR8300HRED TR COMPCT HG DUP REC

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007035179

  • Amperage - 20 Amp

  • Applications - Hospital Grade

  • Catalog Number - TR8300HRED

  • Color - Red

Packaging

  • 1 ea

EAN

00785007035179

Part #

120070

Catalog #

TR-8300HRED

Commercial reference

TR-8300HRED

12-Digit UPC:

785007035179

Amperage:

20 Amp

Applications:

Hospital Grade

Catalog Number:

TR8300HRED

Color:

Red

Conductor Size:

14-10 AWG

Country of Origin:

Mexico

Depths:

0.78 Inch

ERP_productname:

PASS TR-8300HRED TR COMPCT HG DUP REC 20A 125V RED

Family Brand Name:

Legrand

Finish:

Matte

Heights:

2.635 Inch

Material:

Thermoplastic

NEMA:

5-20R

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Size:

.78" (D) x 1.322" (W) x 3.281" (H)

Sub Brand:

Pass & Seymour

Tc Connection:

Side & Back Wired

Type:

Tamper-Resistant Hospital Grade Duplex Receptacle

Voltage:

125 Volt

Widths:

1.322 in

Wire Size:

10 AWG

SoneparProductId:

SKU_US_52945991

Hospital-Grade Tamper-Resistant Compact Design Receptacle, Back and Side Wire, 20A, 125V Features: Impact-resistant nylon face.; Stainless steel mounting screws also resist corrosion.; Easily accessible break-off line contact connecting tab for split circuit wiring.; Corrosion-resistant, zinc-plated steel strap is locked in.; Internal screw-pressure-plate back wire and side wire line terminals accept #14 : #10 AWG copper or copper-clad conductors.; High strength thermoplastic back body.; Compact design for easy installation.; Tri-drive terminal and mounting screws.; Meets National Electrical Code Tamper-Resistant requirements.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.; Wire Size: #14 - #10 AWG Copper Conductor Only - Certifications: cULus Listed
