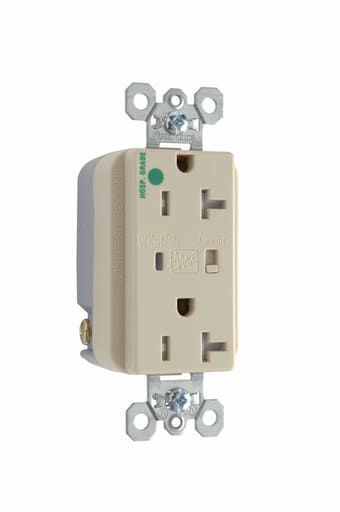

Pass & Seymour / Legrand - P&S TR8300ISP HG SPD RECP TR 20A/12

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007020342

  • Amperage - 20 Amp

  • Applications - Commercial,Residential

  • Catalog Number - TR8300ISP

  • Class - IG

Packaging

  • 1 ea

EAN

00785007020342

Part #

240165

Catalog #

TR8300-ISP

Commercial reference

TR8300-ISP

12-Digit UPC:

785007020342

Amperage:

20 Amp

Applications:

Commercial,Residential

Catalog Number:

TR8300ISP

Class:

IG

Color:

Ivory

Country of Origin:

China

Depths:

1.4 Inch

ERP_productname:

PASS TR8300-ISP HG SPD RECP TR 20A/125V ALARM IV

Family Brand Name:

Legrand

Grade:

Specification

Heights:

3-3/4 Inch

Material:

Thermoplastic

Number of Phases:

1 Phase

Size:

.94" Depth x 1.75" Width x 3.82" Height

Sub Brand:

Pass & Seymour

Tc Connection:

Side & Back Wire

Type:

Duplex

Voltage:

125 Volt

Widths:

1.70 in

SoneparProductId:

SKU_US_52854270

Tamper-Resistant Hospital Grade Extra Heavy-Duty Surge ProtectiveDuplexReceptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back and Side Wire, 20amp 125volt, Blue.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page. Certifications: cULus Listed - Features: Dual mechanical shutter system to help prevent insertion of foreign objects.; Auto-ground clip assures positive ground.; Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.; Backed-out tri-drive brass terminal screws for faster installation.; Internal screw-pressure-plate back and side wire capability.; Two back wire holes for additional wiring flexibility.; Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.; .032 inch thick brass triple-wipe power contacts.; Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.; For covering patents, see www.legrand.us/patents.
