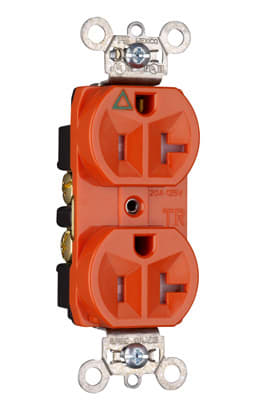

Pass & Seymour / Legrand - P&S TRIG5362 IG TR DUP RECEPT 20A 1

Tamper-Resistant Isolated Ground Heavy-Duty Spec Grade Duplex Receptacle, Back and Side Wire, 20A, 125V. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page. Features: Dual mechanical shutter system to help prevent insertion of foreign objects.; Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.; Backed-out tri-drive brass terminal screws for faster installation.; Internal screw-pressure-plate back and side wire capability.; Two back wire holes for additional wiring flexibility.; .032 inch thick brass triple-wipe power contacts.; Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.; For covering patents, see www.legrand.us/patents.; Temperature Rise: Maximum 30±C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60±C, minimum -40±C without impact - Certifications: cULus Listed
