Pass & Seymour / Legrand - Pass & Seymour 1070-B 1.176" x 3.156" 24 VDC Low Vage Magnetic Latching Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007200270
Amperage - 20 Amp
Applications - Commercial
Catalog Number - 1070B
Color - Black
Packaging
1 ea
EAN
00785007200270
Part #
173970
Catalog #
1070B
Commercial reference
1070B
12-Digit UPC:
785007200270
Amperage:
20 Amp
Applications:
Commercial
Catalog Number:
1070B
Color:
Black
Country of Origin:
Mexico
ERP_productname:
PASS 1070B MAGNETIC LATCHING RELAY, 24VAC/24VDC CONTROL
Enclosure:
Nylon
Family Brand Name:
Pass & Seymour
Heights:
3.156 Inch
Length:
3.156 Inch
Material:
Nylon
Sub Brand:
Pass & Seymour
Type:
Magnetic Latching Relay
Voltage:
24 Volt
Widths:
1.176 in
SoneparProductId:
SKU_US_26504308

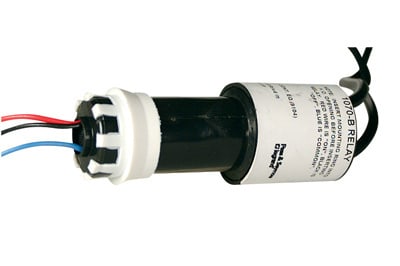

Low Voltage Component, Magnetic Latching Relay, 24VAC/24VDC Control. Reliable field-tested switching circuitry that provide central or local control of lighting loads. Certifications: UL Listed; CSA Listed - Features: Mount in standard 1/2'' KO through noise suppressing nylon ring.; Maximum ambient temp: 140: F (60: ).; Insulated flame retardant nylon shell.; Prestripped 5-1/2'' (140mm) #22 AWG leads for easy wiring.; Split coil design energizes ON coil to close line contacts, and OFF coil to open contacts.; Can be mounted in any position.; Operates on momentary impulse.; Draws .520 mA.; For covering patents, see www.legrand.us/patents.
