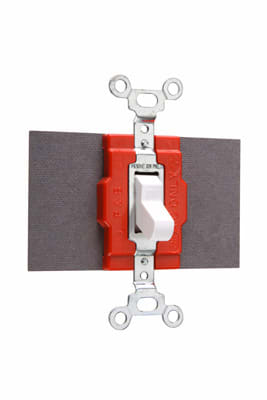

Pass & Seymour / Legrand - Pass & Seymour 1225-W Manual Control Switch, Single Pole / Double Throw, 20A 120/277V - White
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007122541
Actuator - Toggle Switch
Amperage - 20 Amp
Applications - Industrial
Catalog Number - 1225W
Packaging
1 ea
EAN
00785007122541
Part #
174347
Catalog #
1225-W
Commercial reference
1225-W
12-Digit UPC:
785007122541
Actuator:
Toggle Switch
Amperage:
20 Amp
Applications:
Industrial
Catalog Number:
1225W
Color:
White
Country of Origin:
Mexico
Depths:
1.469 Inch
ERP_productname:
PASS 1225-W SPDT 20A WH MAINCONT SW
Family Brand Name:
Legrand
Finish:
Matte
Heights:
3.281 Inch
Number of Poles:
1 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Non-Reversing
Voltage:
120 Volt
Widths:
1.5 in
SoneparProductId:
SKU_US_26516452
Single Pole, Double Throw Switch, 20 amps, 120/277 volts, Grey. (spdt) Features: Oversize silver alloy contacts for long life and better heat dissipation.; Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.; Fiber terminal insulation barriers standard.; Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.; Bodies, covers, and toggles molded of durable nylon.; Single Pole-Double Throw only.; Locking Switches supplied with one 1498-NT key.; Normally open.; For covering patents, see https://www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, visit www.legrand.us/electrical-wiring-devices/wall-plates. - Certifications: cULus Listed; CSA Listed; UL Listed
