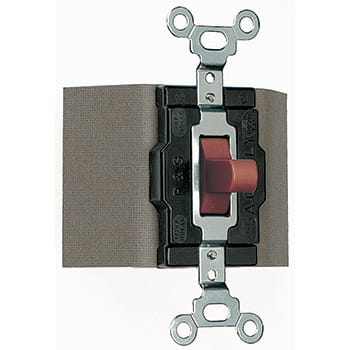

Pass & Seymour / Legrand - Pass & Seymour 1250 Manual Controller, Single Pole, Double Throw, 15A 120/277V, Momentary Contact - Brown
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007125009
Amperage - 15 Amp
Applications - Industrial
Catalog Number - 1250
Color - Brown
Packaging
1 ea
EAN
00785007125009
Part #
380745
Catalog #
1250
Commercial reference
1250
12-Digit UPC:
785007125009
Amperage:
15 Amp
Applications:
Industrial
Catalog Number:
1250
Color:
Brown
Country of Origin:
Mexico
Depths:
1.469 Inch
ERP_productname:
PASS 1250 SW MOMENTARY CONTRL 15A 120/277V (SPDT)
Enclosure:
Box or NEMA 1 sheet steel
Family Brand Name:
Legrand
Finish:
Matte
Heights:
3.281 Inch
Material:
Nylon
Number of Poles:
1 Pole
Size:
3.3"
Sub Brand:
Pass & Seymour
Type:
Manual Controller Switch
Voltage:
120 Volt
Wattage:
1 Watt
Widths:
1.5 in
SoneparProductId:
SKU_US_26667841
Single Pole, Double Throw Switch. 15 Amps, 120/277VAC rating, Brown.Tested to 3 Amps, 24Vdc rating. Certifications: cULus Listed; UL Listed; CSA Listed - Features: Oversize silver alloy contacts for long life and better heat dissipation.; Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.; Fiber terminal insulation barriers standard.; Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.; Bodies, covers, and toggles molded of durable nylon.; Single Pole-Double Throw and Double Pole-Double Throw.; Locking Switches supplied with one 1498-NT key.; Normally open.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
