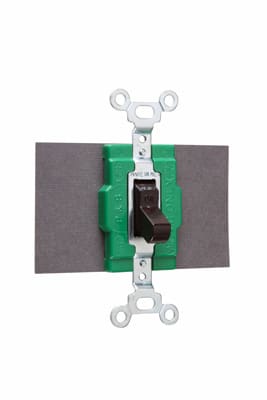

Pass & Seymour / Legrand - Pass & Seymour 1276 30A 120/277V Double Pole, Double Throw Switch, Two Position, No Center Off - Brown

CopyCopy
Pass & Seymour / Legrand - Pass & Seymour 1276 30A 120/277V Double Pole, Double Throw Switch, Two Position, No Center Off - Brown

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007127607

  • Actuator - Toggle

  • Amperage - 30 Amp

  • Applications - Industrial

  • Catalog Number - 1276

Packaging

  • 1 ea

EAN

00785007127607

Part #

256903

Catalog #

1276

Commercial reference

1276

12-Digit UPC:

785007127607

Actuator:

Toggle

Amperage:

30 Amp

Applications:

Industrial

Catalog Number:

1276

Color:

Brown

Country of Origin:

Mexico

Depths:

1.469 Inch

ERP_productname:

PASS 1276 SW MAN CONTRL 30A 120/277V (DPDT)

Enclosure:

Box or NEMA 1 sheet steel

Family Brand Name:

Pass & Seymour

Finish:

Matte

Grade:

Industrial

Heights:

3.281 Inch

Number of Poles:

2 Pole

Size:

3.3"

Sub Brand:

Pass & Seymour

Type:

Manual Controller Switch

Voltage:

120 Volt

Wattage:

2 Watt

Widths:

1.5 in

SoneparProductId:

SKU_US_26409108

Double Pole, Double Throw Switch, 30 amps, 120/277 volts, Brown. Features: Oversize silver alloy contacts for long life and better heat dissipation.; Side wired terminals accept #14 - #10 AWG copper or copper-clad conductors.; Fiber terminal insulation barriers standard.; Can be mounted in standard device boxes or in NEMA 1 sheet steel enclosures.; Bodies, covers, and toggles molded of durable nylon.; Single Pole-Double Throw and Double Pole-Double Throw.; Locking Switches supplied with one 1498-NT key.; Normally open.; For covering patents, see www.legrand.us/patents.; For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here. - Certifications: cULus Listed; UL Listed; CSA Listed
