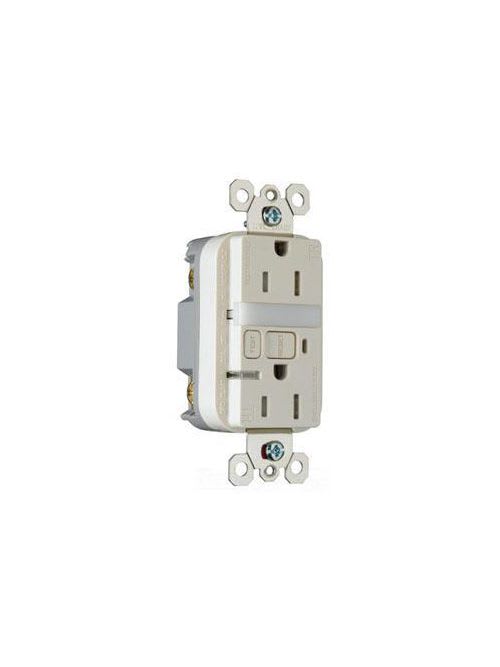

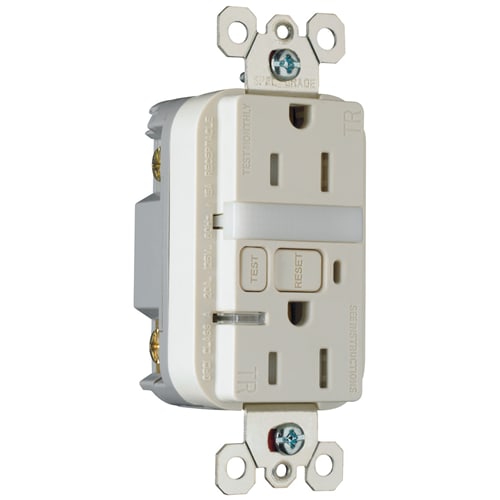

Pass & Seymour / Legrand - Pass & Seymour 1595-NTLTRLACC4 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Light Almond Thermoplastic Night Light/GFCI Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007239676

  • Amperage - 15 Amp

  • Catalog Number - 1595NTLTRLACC4

  • Color - Light Almond

  • Depths - 1.13 Inch

Packaging

  • 1 ea

EAN

00785007239676

Part #

188838

Catalog #

1595-NTLTRLACC4

Commercial reference

1595-NTLTRLACC4

12-Digit UPC:

785007239676

Amperage:

15 Amp

Catalog Number:

1595NTLTRLACC4

Color:

Light Almond

Depths:

1.13 Inch

ERP_productname:

PASS 1595-NTLTRLACC4 15A 125V RCPT

Family Brand Name:

Legrand

Grade:

Residential

Heights:

4.2 Inch

Length:

4.2 Inch

NEMA:

5-15R

Number of Wires:

3 Wire

Type:

Decorator, Tamper-Resistant

Voltage:

125 Volt

Widths:

1.72 in

SoneparProductId:

SKU_US_26834856

From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our tamper-resistant nightlight/GFCI ensure safety and convenience. LED illumination has a 20+ year life expectancy, which means no bulbs to change. Available Options: Tamper-Resistant 15A Night Light/GFCI Receptacle, Black; Tamper-Resistant 15A Night Light/GFCI Receptacle, White; Tamper-Resistant 15A Night Light/GFCI Receptacle, Antique Brass; Tamper-Resistant 15A Night Light/GFCI Receptacle, Nickel; Tamper-Resistant 15A Night Light/GFCI Receptacle, Ivory; Tamper-Resistant 15A Night Light/GFCI Receptacle, Dark Bronze; Tamper-Resistant 15A Night Light/GFCI Receptacle, Light Almond; Tamper-Resistant 15A Night Light/GFCI Receptacle, Titanium - Related Products: SWP264LA; SWP26LA; SWP262LA; SWP263LA - Features & Benefits: FSUL Listed (Federal Specification WC596).; 10kA short circuit wiring.; Two back wire holes per terminal.; Nightlight uses cooler LED illumination.; Supplied with matching TP26 nylon wall plate.; Mounting screws are shipped captive in the device and wall plate for easier installation.; Class A rated GFCI.; Ground screw has a back wire clamp for easy installation.; Meets National Electrical Code® Tamper-Resistant requirements.; LED Rated at 186 milliwatts 120V.; Two receptacles.; Energy-efficient LED has average 20-year life expectancy, eliminating bulb replacement.; Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.; SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.; For covering patents, see www.legrand.us/patents.; Button colors match the device face.; High-impact-resistant thermoplastic construction.; Sealed nightlight with high impact-resistant Lexan® lens prevents tampering.; Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.; Photocell turns nightlight ON in dark, OFF in daylight.; Trip indicator light (red LED).; Dual-direction test and reset buttons.; Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles; Extra-long strap.; Protects children: patented shutter system helps prevent improper insertion of foreign objects.
