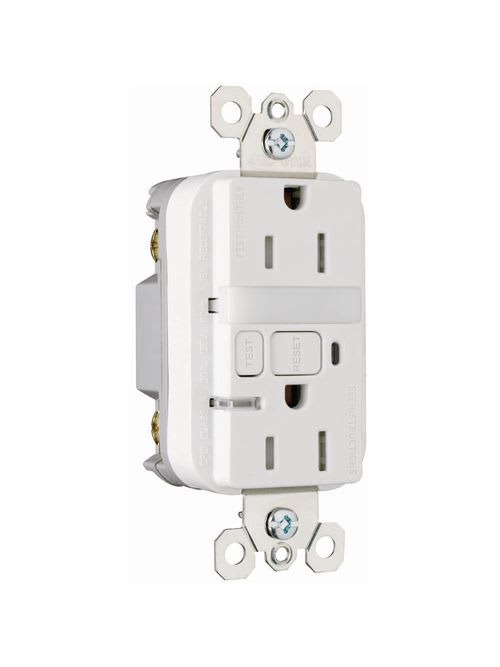

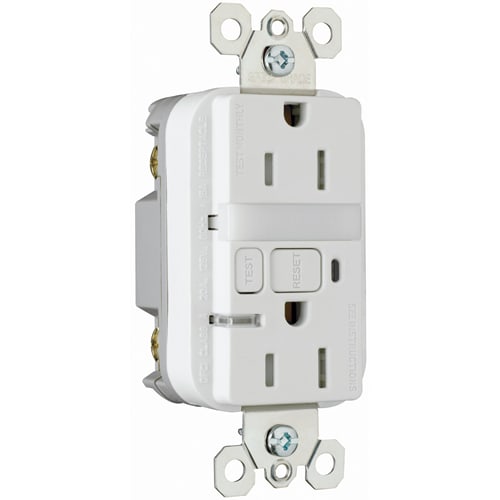

Pass & Seymour / Legrand - Pass & Seymour 1595-NTLTRWCC4 15A 125V 2-Pole 3-Wire NEMA 5-15R Night Light/GFCI Receptacle - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007239669

  • Amperage - 15 Amp

  • Catalog Number - 1595-NTLTRWCC4

  • Color - White

  • Depths - 1.13 Inch

Packaging

  • 1 ea

EAN

00785007239669

Part #

188831

Catalog #

1595-NTLTRWCC4

Commercial reference

1595-NTLTRWCC4

12-Digit UPC:

785007239669

Amperage:

15 Amp

Catalog Number:

1595-NTLTRWCC4

Color:

White

Depths:

1.13 Inch

ERP_productname:

PASS 1595-NTLTRWCC4 15A 125V RCPT

Family Brand Name:

Pass & Seymour

Heights:

4.2 Inch

Length:

4.2 Inch

NEMA:

5-15R

Sub Brand:

SafeLock

Type:

Decorator

Voltage:

125 Volt

Widths:

1.72 in

SoneparProductId:

SKU_US_57873371

From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our tamper-resistant nightlight/GFCI ensure safety and convenience. LED illumination has a 20+ year life expectancy, which means no bulbs to change. Related Products: SWP26W; 1595NTLTRNICC4; 1595TRWRW; 1597TRW - Available Options: Tamper-Resistant 15A Night Light/GFCI Receptacle, Black; Tamper-Resistant 15A Night Light/GFCI Receptacle, Nickel; Tamper-Resistant 15A Night Light/GFCI Receptacle, Titanium; Tamper-Resistant 15A Night Light/GFCI Receptacle, Ivory; Tamper-Resistant 15A Night Light/GFCI Receptacle, Antique Brass; Tamper-Resistant 15A Night Light/GFCI Receptacle, Light Almond; Tamper-Resistant 15A Night Light/GFCI Receptacle, Dark Bronze - Features & Benefits: Mounting screws are shipped captive in the device and wall plate for easier installation.; FSUL Listed (Federal Specification WC596).; High-impact-resistant thermoplastic construction.; Trip indicator light (red LED).; 10kA short circuit wiring.; Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.; Two receptacles.; Photocell turns nightlight ON in dark, OFF in daylight.; Ground screw has a back wire clamp for easy installation.; Extra-long strap.; Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire.; Energy-efficient LED has average 20-year life expectancy, eliminating bulb replacement.; Protects children: patented shutter system helps prevent improper insertion of foreign objects.; SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.; Meets National Electrical Code® Tamper-Resistant requirements.; Nightlight uses cooler LED illumination.; Two back wire holes per terminal.; LED Rated at 186 milliwatts 120V.; Button colors match the device face.; Supplied with matching TP26 nylon wall plate.; Sealed nightlight with high impact-resistant Lexan® lens prevents tampering.; Class A rated GFCI.; Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles; For covering patents, see www.legrand.us/patents.; Dual-direction test and reset buttons.
