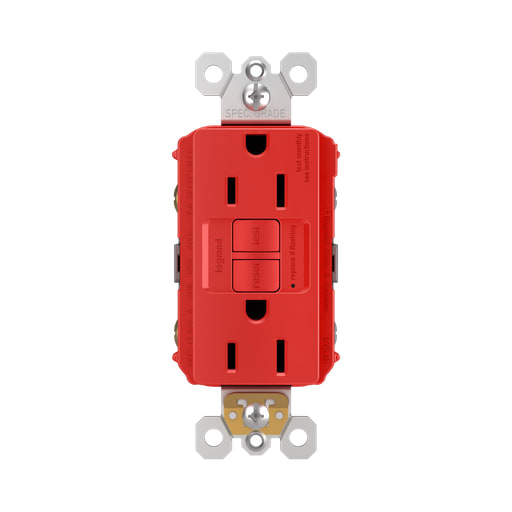

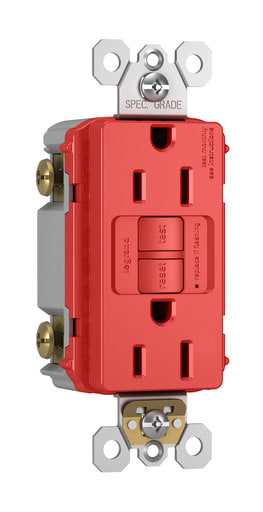

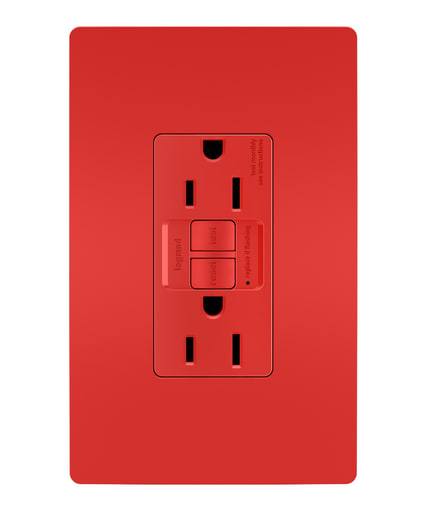

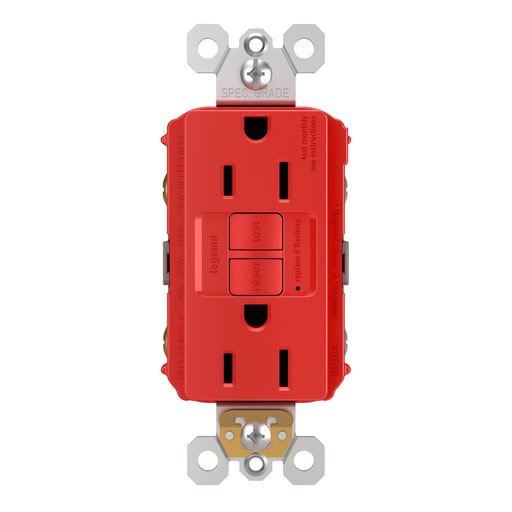

Pass & Seymour / Legrand - Pass & Seymour 1597-RED 15A 125V Self-Test GFCI Red

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007036411

  • Actuator - Control Circuit

  • Amperage - 15 Amp

  • Applications - Commercial and Residential Applications

  • Catalog Number - 1597RED

Packaging

  • 1 ea

EAN

00785007036411

Part #

116069

Catalog #

1597-RED

Commercial reference

1597-RED

12-Digit UPC:

785007036411

Actuator:

Control Circuit

Amperage:

15 Amp

Applications:

Commercial and Residential Applications

Catalog Number:

1597RED

Color:

Red

Country of Origin:

China

Depths:

1-1/4 Inch

ERP_productname:

PASS 1597-RED SELF-TEST GFCI RECEP 15A 125V 20A F RD

Family Brand Name:

Pass & Seymour

Heights:

4.2 Inch

Interrupt Rating:

4.0 A

Length:

1.03 Inch

Material:

Thermoplastic

Mounting Type:

Box

Number of Gangs:

1 Gang

Number of Poles:

2 Pole

Sub Brand:

radiant

Tc Connection:

Back and Side Wire

Trip Type:

.025 Second Nominal

Type:

Specification Grade 15A Self-Test Duplex GFCI

Voltage:

125 Volt

Widths:

1.73 in

SoneparProductId:

SKU_US_52973264

GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen . no more confusion at the breaker box. Maximize safety, in style, with GFCI protection featuring the sleek, clean lines of radiant. GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations. Features: Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device; Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced; Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected; Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly; Replaces any standard receptacle with ease, in as little as 10 minutes; Features durable, high-impact resistant thermoplastic construction; More color options available to fit any style, including finishes to match current hardware and lighting trends; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection - Certifications: UL Listed; cULus Listed
