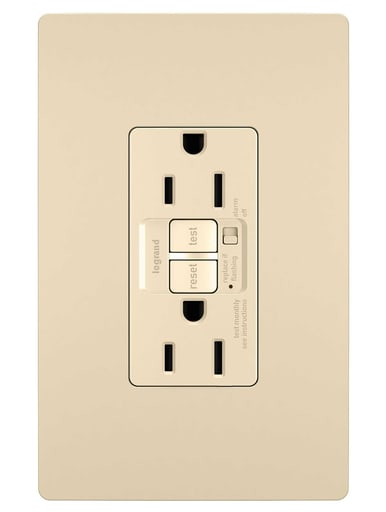

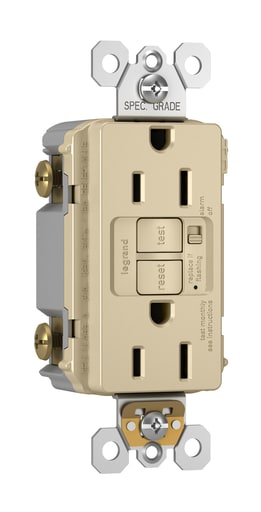

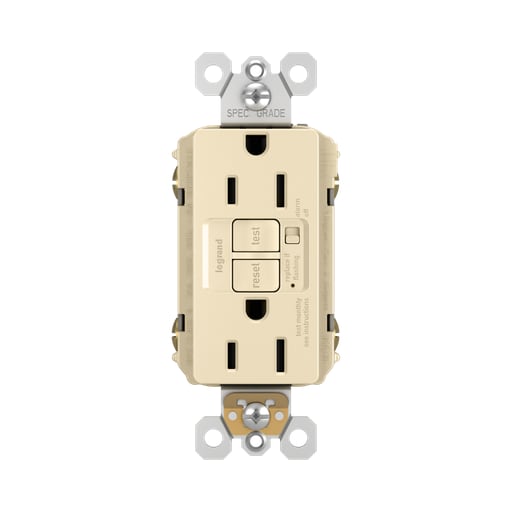

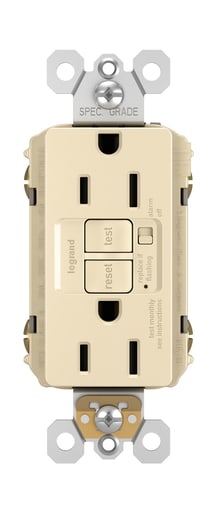

Pass & Seymour / Legrand - Pass & Seymour 1597-TRAI 15 Amp GFCI Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007048421

  • Actuator - Control Circuit

  • Amperage - 15 Amp

  • Applications - Commercial,Residential

  • Catalog Number - 1597TRAI

Packaging

  • 1 ea

EAN

00785007048421

Part #

252209

Catalog #

1597-TRAI

Commercial reference

1597-TRAI

12-Digit UPC:

785007048421

Actuator:

Control Circuit

Amperage:

15 Amp

Applications:

Commercial,Residential

Catalog Number:

1597TRAI

Color:

Ivory

Country of Origin:

China

Depths:

1.03 Inch

ERP_productname:

PASS 1597-TRAI RADIANT SLF TST TR ALRM GFCI 15A 125V I

Family Brand Name:

Legrand

Heights:

4.2 Inch

Interrupt Rating:

4.0 A

Length:

1.03 Inch

Material:

Thermoplatic

Mounting Type:

Box

NEMA:

5-15R

Number of Gangs:

1 Gang

Number of Poles:

2 Pole

Sub Brand:

radiant

Tc Connection:

Back and Side Wire

Trip Type:

.025 Second Nominal

Type:

Specification Grade Tamper-Resistant 15A Self-Test Duplex GFCI

Voltage:

125 Volt

Widths:

1.73 in

SoneparProductId:

SKU_US_27218747

The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. Make sure you can spot ground fault trips quickly and resolve them easily with GFCI Receptacles installed in the living space. radiant® Screwless Wall Plate not included. For detailed GFCI receptacle information, visit our GFCI Headquarters. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page. Features: Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI outlets make it easier to fix trips with a convenient reset button on the outlet.; Audible Alarm alerts when a trip occurs. Alarm rated at 60 dB at 10 feet and can be turned ON/OFF.; Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.; Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.; Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.; Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with \"\"invisi-shutters\"\" for an invisible effect.; More color options available to fit any style, including finishes to match current hardware and lighting trends.; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection. - Certifications: UL Listed; cULus Listed
