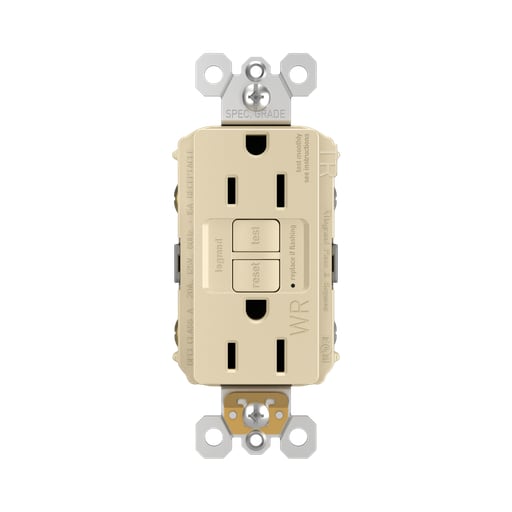

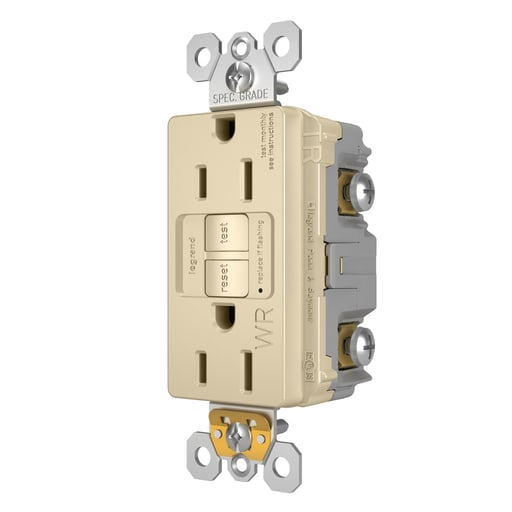

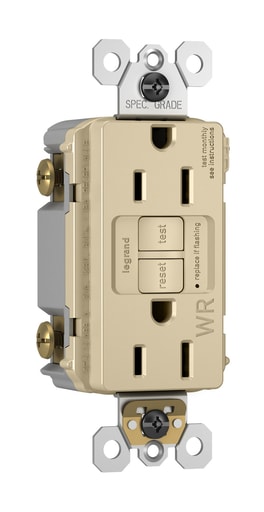

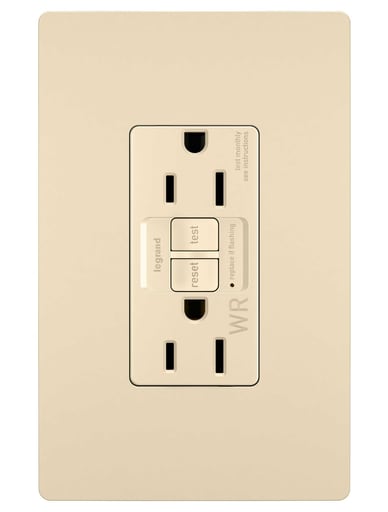

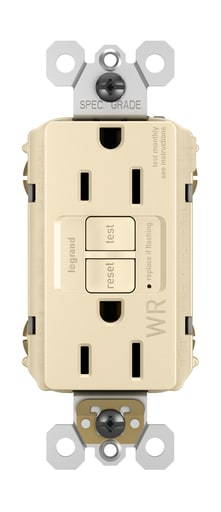

Pass & Seymour / Legrand - Pass & Seymour 1597-TRWRI 15A 125V Self-Test Tamper-Resistant Weather-Resistant GFCI, Ivory

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007036138

  • Actuator - Control Circuit

  • Amperage - 15 Amp

  • Applications - For Commercial, Residential Applications

  • Catalog Number - 1597TRWRI

Packaging

  • 1 ea

EAN

00785007036138

Part #

225893

Catalog #

1597-TRWRI

Commercial reference

1597-TRWRI

12-Digit UPC:

785007036138

Actuator:

Control Circuit

Amperage:

15 Amp

Applications:

For Commercial, Residential Applications

Catalog Number:

1597TRWRI

Color:

Ivory

Conductor Size:

14-10 AWG

Country of Origin:

China

Depths:

1.13 Inch

ERP_productname:

PASS 1597-TRWRI SELF-TEST GFCI RECEP TAMPER RESISTANT WEATHER RESISTANT 15A 125V IVORY

Family Brand Name:

Pass & Seymour

Grade:

Specification

Heights:

4.2 Inch

Interrupt Rating:

4.0 A

Length:

1.03 Inch

Material:

Thermoplastic

Mounting Type:

Box

NEMA:

5-15R

Number of Gangs:

1 Gang

Number of Poles:

2 Pole

Sub Brand:

TradeMaster

Tc Connection:

Back and Side Wire

Trip Type:

.025 Second Nominal

Type:

Self-Test, Tamper-Resistant, Weather-Resistant

Voltage:

125 Volt

Widths:

1.73 in

SoneparProductId:

SKU_US_26450708

GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen . no more confusion at the breaker box. Also including tamper and weather* resistance, this model was designed for use on decks, patios, pool areas, and other outdoor spaces. Maximize safety, in style, with GFCI protection featuring the sleek, clean lines of radiant. GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations. Features: Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.; Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.; Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.; Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.; Designed with weather-resistance for use in outdoor locations such as decks, patios and pool areas. *Must be installed in weatherproof enclosure per NEC requirements.; Replaces any standard receptacle with ease, in as little as 10 minutes.; Features durable, high-impact resistant thermoplastic construction.; More color options available to fit any style, including finishes to match current hardware and lighting trends.; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection. - Certifications: UL Listed; cULus Listed
