Pass & Seymour / Legrand - Pass & Seymour 2087-LA 20A 125V Deadfront Self-Test GFCI Light Almond

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007036381

  • Actuator - Control Circuit

  • Amperage - 20 Amp

  • Applications - Commercial, Residential Use

  • Catalog Number - 2087LA

Packaging

  • 1 ea

EAN

00785007036381

Part #

225900

Catalog #

2087-LA

Commercial reference

2087-LA

12-Digit UPC:

785007036381

Actuator:

Control Circuit

Amperage:

20 Amp

Applications:

Commercial, Residential Use

Catalog Number:

2087LA

Color:

Light Almond

Country of Origin:

China

Depths:

1.13 Inch

ERP_productname:

PASS 2087-LA SELF-TEST GFCI DEAD FRONT 20A 125V LA

Family Brand Name:

Pass & Seymour

Grade:

Specification

Heights:

4.2 Inch

Interrupt Rating:

4.0 A

Length:

1.03 Inch

Material:

Thermoplastic

Mounting Type:

Box

NEMA:

5-20R

Number of Gangs:

1 Gang

Number of Poles:

2 Pole

Sub Brand:

radiant

Tc Connection:

Back and Side Wire

Trip Type:

.025 Second Nominal

Type:

Specification Grade Dead-Front 20A Self-Test GFCI Receptacle

Voltage:

125 Volt

Widths:

1.73 in

SoneparProductId:

SKU_US_26489378

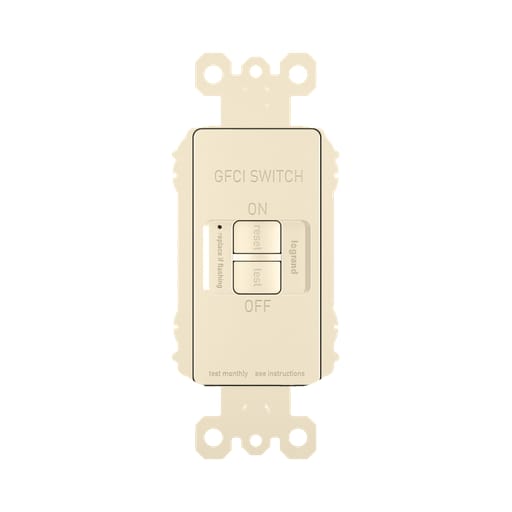

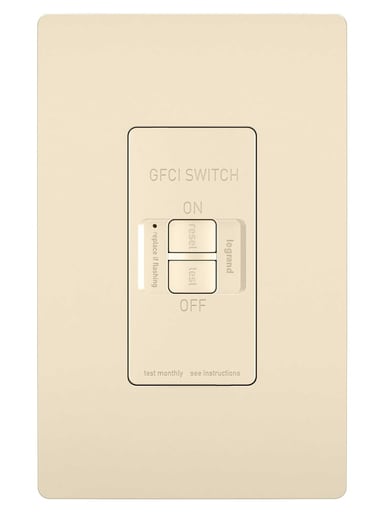

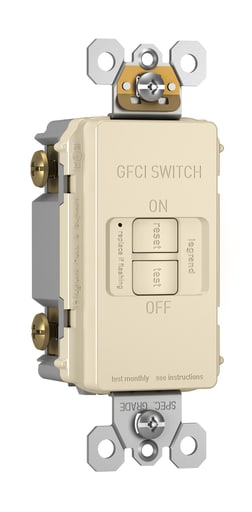

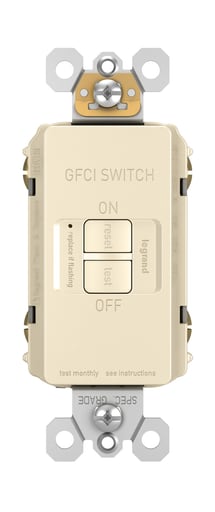

This dead front receptacle is a ground fault circuit interrupter designed for use when access to power isn't also needed. Ideal for use in spaces where ground fault protection is required around large or hard-to-move equipment, such as residential spa or hydromassage tubs and commercial kitchen appliances. The device features a convenient indicator light and accessible test/reset buttons that make trips easier to recognize and fix than with GFCI breaker alternatives. Conducts an automatic self-test every three seconds to ensure reliable protection, while also featuring the sleek, clean lines of the radiant® Collection for a sophisticated look. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations. Features: Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.; Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.; Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.; Replaces any standard receptacle with ease, in as little as 10 minutes.; Features durable, high-impact resistant thermoplastic construction.; More color options available to fit any style, including finishes to match current hardware and lighting trends.; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection. - Certifications: UL Listed; cULus Listed
