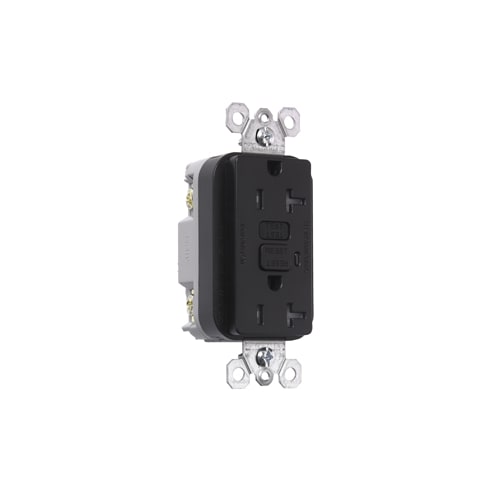

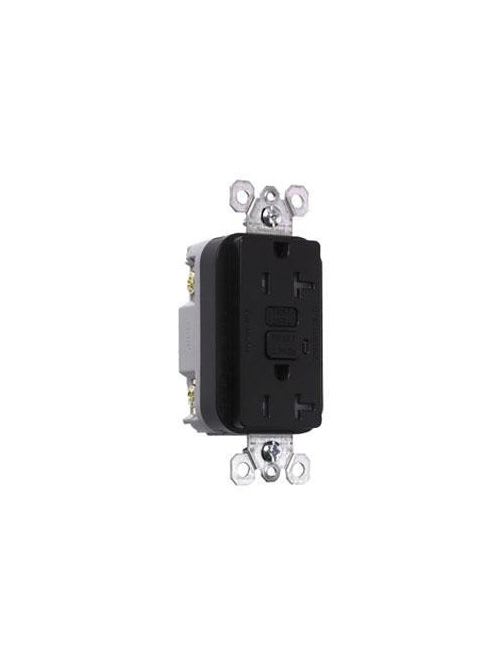

Pass & Seymour / Legrand - Pass & Seymour 2095-TRBK 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Black Thermoplastic Duplex GFCI Receptacle

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007423839

  • Amperage - 20 Amp

  • Catalog Number - 2095TRBK

  • Color - Black

  • Depths - 1.13 Inch

Packaging

  • 1 ea

EAN

00785007423839

Part #

184221

Catalog #

2095-TRBK

Commercial reference

2095-TRBK

12-Digit UPC:

785007423839

Amperage:

20 Amp

Catalog Number:

2095TRBK

Color:

Black

Depths:

1.13 Inch

ERP_productname:

PASS 2095-TRBK GFCI RECEP TAMPER RESIST 20A 125V 2

Family Brand Name:

Legrand

Finish:

Matte

Grade:

Specification

Heights:

4.2 Inch

Length:

4.2 Inch

Material:

Thermoplastic

Mounting Type:

Flush

NEMA:

5-20R

Type:

Decorator, Tamper-Resistant

Voltage:

125 Volt

Widths:

1.72 in

SoneparProductId:

SKU_US_26751748

From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. With high-impact-resistant, thermoplastic construction, our spec-grade GFCI are the most durable GFCI available. Also features patented SafeLock™ Protection.if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected. Available Options: Spec Grade Tamper-Resistant 20A Duplex GFCI, White; Spec Grade Tamper-Resistant 20A Duplex GFCI, Red; Spec Grade Tamper-Resistant 20A Duplex GFCI, Light Almond; Spec Grade Tamper-Resistant 20A Duplex GFCI, Ivory; Spec Grade Tamper-Resistant 20A Duplex GFCI, Gray; Spec Grade Tamper-Resistant 20A Duplex GFCI, Brown; Spec Grade Tamper-Resistant 20A Duplex GFCI, Black - Features & Benefits: Button colors match the device face.; 10kA short circuit rating.; Dual-direction test and reset buttons.; Tamper-resistant models have dual mechanical shutter system to help prevent insertion of foreign objects.; Mounting screws are shipped captive in the device and wall plate for easier installation.; Nightlight uses cooler LED illumination.; Tri-drive screws.; Class A rated GFCI.; Photocell turns nightlight ON in dark, OFF in daylight. SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.; Energy-efficient LED has average 20-year life expectancy, eliminating bulb replacement.; FSUL Listed (Federal Specification WC596).; Zinc-plated steel mounting strap.; High-impact-resistant thermoplastic construction.; For covering patents, see www.legrand.us/patents.; Stylish rounded corners match Signature wall plates and devices.; Trip indicator light (red LED).; Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.; Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.; Sealed nightlight with high impact-resistant Lexan® lens prevents tampering.
