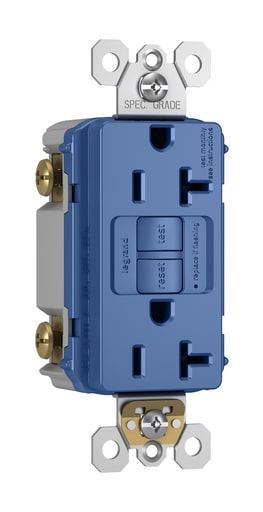

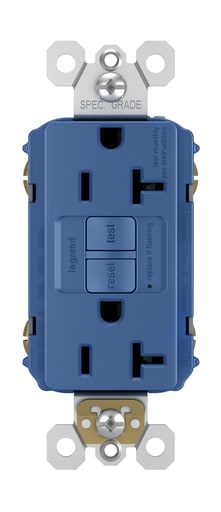

Pass & Seymour / Legrand - Pass & Seymour 2097-NABL 20A 125V Self Test NAFTA Compliant GFCI Blue

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007050097

  • Actuator - Control Circuit

  • Amperage - 20 Amp

  • Applications - Commercial,Residential

  • Catalog Number - 2097NABL

Packaging

  • 1 ea

EAN

00785007050097

Part #

297710

Catalog #

2097-NABL

Commercial reference

2097-NABL

12-Digit UPC:

785007050097

Actuator:

Control Circuit

Amperage:

20 Amp

Applications:

Commercial,Residential

Catalog Number:

2097NABL

Color:

Blue

Country of Origin:

Mexico

Depths:

1.13 Inch

ERP_productname:

PASS 2097-NABL RADIANT NAFTA SLF TST TR GFI 20A BLUE

Family Brand Name:

Legrand

Heights:

4.2 Inch

Interrupt Rating:

4.0 A

Length:

1.03 Inch

Material:

Thermoplatic

Mounting Type:

Box

Number of Gangs:

1 Gang

Number of Poles:

2 Pole

Sub Brand:

radiant

Tc Connection:

Back and Side Wire

Trip Type:

.025 Second Nominal

Type:

NAFTA-Compliant 20A Self-Test Duplex GFCI

Voltage:

125 Volt

Widths:

1.73 in

SoneparProductId:

SKU_US_52897975

GFCI receptacles from the radiant® Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection in the home, GFCI receptacles make it easier to recognize and fix trips right where they happen . no more confusion at the breaker box. 20A outlets are ideal for use with larger appliances, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations. Features: Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.; Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.; Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.; Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.; More color options available to fit any style, including finishes to match current hardware and lighting trends.; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.; NAFTA-Compliant devices are ideal for use on projects subject to the provisions of the Buy America Act. - Certifications: cULus Listed
