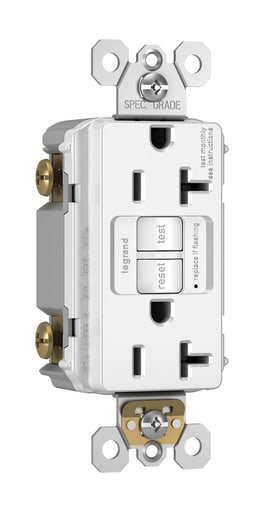

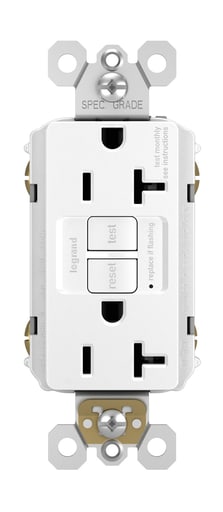

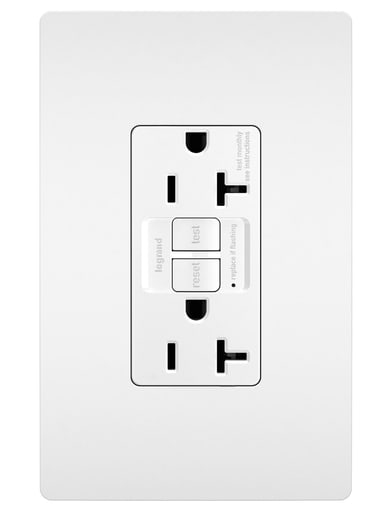

Pass & Seymour / Legrand - Pass & Seymour 2097-NAW 20A 125V Self-Test Tamper-Resistant GFCI with Alarm NAFTA White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007050110

  • Actuator - Control Circuit

  • Amperage - 20 Amp

  • Applications - Commercial/Residential

  • Catalog Number - 2097NAW

Packaging

  • 1 ea

EAN

00785007050110

Part #

199980

Catalog #

2097-NAW

Commercial reference

2097-NAW

12-Digit UPC:

785007050110

Actuator:

Control Circuit

Amperage:

20 Amp

Applications:

Commercial/Residential

Catalog Number:

2097NAW

Color:

White

Country of Origin:

Mexico

Depths:

1.13 Inch

ERP_productname:

PASS 2097-NAW SELF-TEST GFCI RECEP 20A 125V NAFTA WH

Family Brand Name:

Legrand

Heights:

4.2 Inch

Length:

1.03 Inch

Material:

Thermoplatic

NEMA:

5-20R

Number of Poles:

2 Pole

Sub Brand:

radiant

Tc Connection:

Back and Side Wire

Trip Type:

.025 Second Nominal

Type:

NAFTA-Compliant 20A Self-Test Duplex GFCI

Voltage:

125 Volt

Widths:

1.73 in

SoneparProductId:

SKU_US_58141800

The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. Make sure you can spot ground fault trips quickly and resolve them easily with GFCI Receptacles installed in the living space. radiant® Screwless Wall Plate not included. For detailed GFCI receptacle information, visit our GFCI Headquarters. Features: Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.; Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.; Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.; Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.; More color options available to fit any style, including finishes to match current hardware and lighting trends.; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.; NAFTA-Compliant devices are ideal for use on projects subject to the provisions of the Buy America Act. - Certifications: cULus Listed
