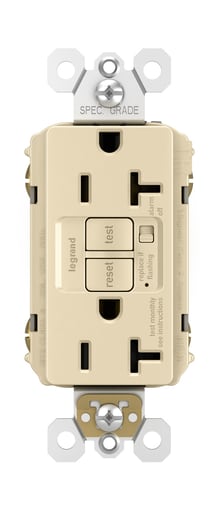

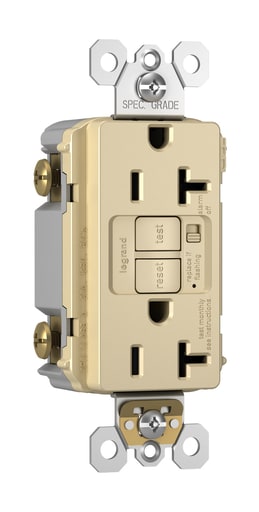

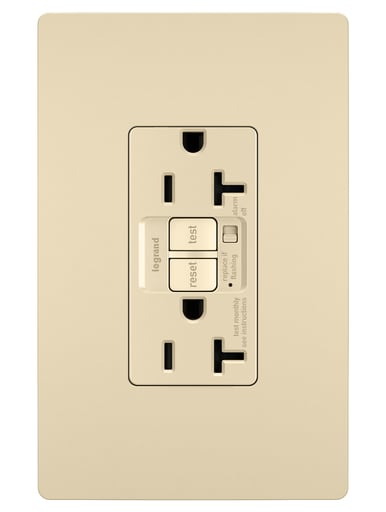

Pass & Seymour / Legrand - Pass & Seymour 2097-TRAI 20A 125V GFCI Tamper Resistant Receptacle - Ivory

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007047936

  • Actuator - Control Circuit

  • Amperage - 20 Amp

  • Applications - Commercial,Residential

  • Catalog Number - 2097TRAI

Packaging

  • 1 ea

EAN

00785007047936

Part #

395813

Catalog #

2097-TRAI

Commercial reference

2097-TRAI

12-Digit UPC:

785007047936

Actuator:

Control Circuit

Amperage:

20 Amp

Applications:

Commercial,Residential

Catalog Number:

2097TRAI

Color:

Ivory

Country of Origin:

China

Depths:

1.03 Inch

ERP_productname:

PASS 2097-TRAI SELF TEST GFCI RECEP TR ALARM 20A 125V I

Family Brand Name:

Legrand

Heights:

4.2 Inch

Interrupt Rating:

4.0 A

Length:

1.03 Inch

Material:

Thermoplatic

NEMA:

5-20R

Number of Poles:

2 Pole

Sub Brand:

Pass & Seymour

Tc Connection:

Back and Side Wire

Trip Type:

.025 Second Nominal

Type:

Specification Grade Audible Alarm Tamper-Resistant 20A Self-Test Duplex GFCI

Voltage:

125 Volt

Widths:

1.73 in

SoneparProductId:

SKU_US_52112099

Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page. Features: Alarm rated at 60 db at 10 feet; One-piece, brass, triple-wipe power contacts for lasting retention; Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced; Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected; Feed-thru wiring configuration allows GFCI to protect downstream receptacles; Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly; Mounting screws are shipped captive in the device and wall plate for easier installation; Dual-direction test and reset button colors match the device face; Thinner than competitors' GFCI Receptacles: leaves more room for wires in the box - Certifications: cULus Listed
