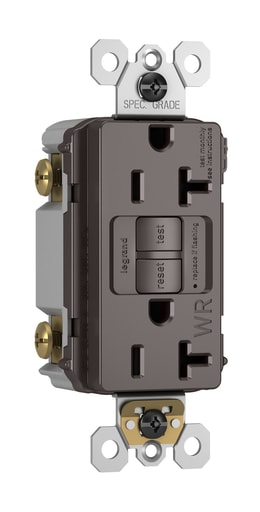

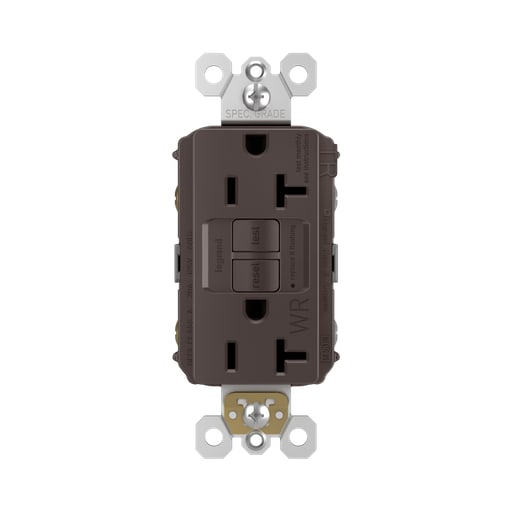

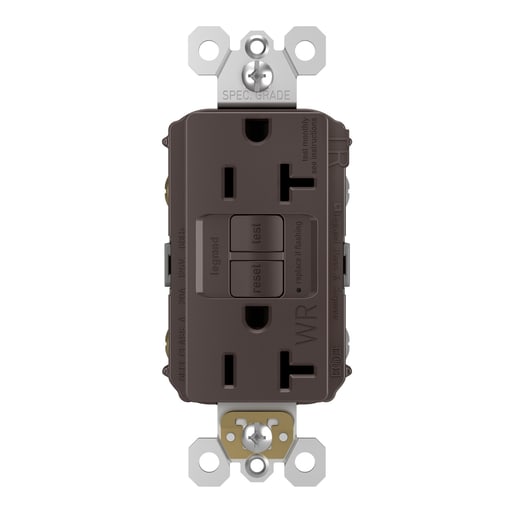

Pass & Seymour / Legrand - Pass & Seymour 2097-TRWR 20A 125V Self-Test Tamper-Resistant Weather-Resistant GFCI Brown

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007036053

  • Actuator - Control Circuit

  • Amperage - 20 Amp

  • Applications - For Commercial, Residential Applications

  • Catalog Number - 2097TRWR

Packaging

  • 1 ea

EAN

00785007036053

Part #

134725

Catalog #

2097-TRWR

Commercial reference

2097-TRWR

12-Digit UPC:

785007036053

Actuator:

Control Circuit

Amperage:

20 Amp

Applications:

For Commercial, Residential Applications

Catalog Number:

2097TRWR

Color:

Brown

Conductor Size:

14-10 AWG

Country of Origin:

China

Depths:

1.13 Inch

ERP_productname:

PASS 2097-TRWR SELF-TEST GFCI RECEP TR WR 20A 125V

Family Brand Name:

Pass & Seymour

Finish:

Matte

Grade:

Specification

Heights:

4.2 Inch

Length:

1.03 Inch

Material:

Thermoplastic

Mounting Type:

Box

NEMA:

5-20R

Number of Gangs:

1 Gang

Number of Poles:

2 Pole

Sub Brand:

TradeMaster

Tc Connection:

Back and Side Wire

Trip Type:

.025 Second Nominal

Type:

Self-Test, Tamper-Resistant, Weather-Resistant

Voltage:

125 Volt

Widths:

1.73 in

SoneparProductId:

SKU_US_26466680

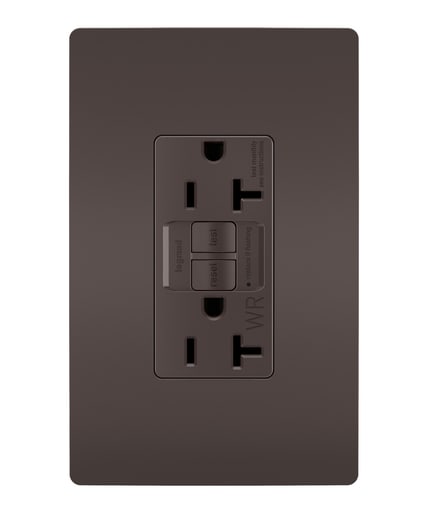

The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. The self-test GFCI conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™ Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected. Make sure you can spot ground fault trips quickly and resolve them easily with GFCI Receptacles installed in the living space. radiant® Screwless Wall Plate not included. For detailed GFCI receptacle information, visit our GFCI Headquarters. Meet code and reduce callbacks by pairing GFCI receptacles with AFCI breakers on kitchen and laundry room circuits.  Learn more at www.legrand.us/gfci. Certifications: UL Listed; cULus Listed - Features: Protects against shock caused by ground-fault occurrences. Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device.; Conducts an industry-leading automatic self-test every 3 seconds. If the device ever fails, the indicator light flashes to signal it should be replaced.; Equipped with proven SafeLock protection feature: if critical components are damaged and protection is lost, power to the outlet is disconnected.; Extends GFCI protection to \"\"downstream\"\" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly.; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection; Replaces any standard receptacle with ease, in as little as 10 minutes.; Features durable, high-impact resistant thermoplastic construction.; More color options available to fit any style, including finishes to match current hardware and lighting trends.; Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
