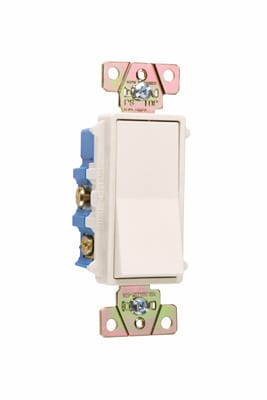

Pass & Seymour / Legrand - Pass & Seymour 2604-LA Four-way, Back and Side Wire, Decorator Switch, 15 amps, 120/277V, Light Almond
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785007539271
Actuator - Paddle, Rocker/Button
Amperage - 15 Amp
Applications - Industrial
Catalog Number - 2604LA
Packaging
1 ea
EAN
00785007539271
Part #
105384
Catalog #
2604LA
Commercial reference
2604LA
12-Digit UPC:
785007539271
Actuator:
Paddle, Rocker/Button
Amperage:
15 Amp
Applications:
Industrial
Catalog Number:
2604LA
Color:
Light Almond
Country of Origin:
Mexico
ERP_productname:
PASS 2604LA SW DEC 4W 15A 120/277V GROUNDED LT
Family Brand Name:
Pass & Seymour
Finish:
Matte
Material:
Plastic
Mounting Type:
Wall, Flush, Screw
Number of Poles:
3 Pole
Size:
4.25"
Sub Brand:
Pass & Seymour
Type:
Switch
Voltage:
120 Volt
Wattage:
4 Watt
SoneparProductId:
SKU_US_52839362
Four-way, Back and Side Wire, Decorator Switch, 15 amps, 120/277 volts, White. Features: Impact-resistant polycarb back body and frame.; Cushioned thermoplastic paddle assures smooth, quiet, long term operation.; Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.; Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.; Terminals made of high conductivity brass and serrated for maximum wire gripping.; Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.; Integral auto-ground clip for positive ground to metal boxes.; Tri-drive ground, terminal, and mounting screws.; All terminal screws backed out, ready-to-install.; For covering patents, see - Certifications: cULus Listed; CSA Listed
