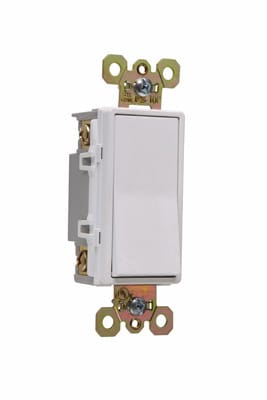

Pass & Seymour / Legrand - Pass & Seymour 2604-W Four-way, Back and Side Wire, Decorator Switch, 15 amps, 120/277V - White

CopyCopy
Pass & Seymour / Legrand - Pass & Seymour 2604-W Four-way, Back and Side Wire, Decorator Switch, 15 amps, 120/277V - White

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785007539257

  • Actuator - Paddle, Rocker/Button

  • Amperage - 15 Amp

  • Applications - For Industrial Application

  • Catalog Number - 2604W

Packaging

  • 1 ea

EAN

00785007539257

Part #

143107

Catalog #

2604-W

Commercial reference

2604-W

12-Digit UPC:

785007539257

Actuator:

Paddle, Rocker/Button

Amperage:

15 Amp

Applications:

For Industrial Application

Catalog Number:

2604W

Color:

White

Country of Origin:

Mexico

Depths:

1.06 Inch

ERP_productname:

PASS 2604-W SW DEC 4W 15A 120/277V GROUNDED WH

Family Brand Name:

Pass & Seymour

Finish:

Matte

Heights:

4.2 Inch

Material:

Thermoplastic

Mounting Type:

Wall, Flush, Screw

Number of Poles:

1 Pole

Size:

4.25"

Sub Brand:

Pass & Seymour

Type:

4 Way

Voltage:

120 Volt

Wattage:

4 Watt

Widths:

1.3 in

SoneparProductId:

SKU_US_26285315

Four-way, Back and Side Wire, Decorator Switch, 15 amps, 120/277 volts, White. Features: Impact-resistant polycarb back body and frame.; Cushioned thermoplastic paddle assures smooth, quiet, long term operation.; Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.; Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.; Terminals made of high conductivity brass and serrated for maximum wire gripping.; Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.; Integral auto-ground clip for positive ground to metal boxes.; Tri-drive ground, terminal, and mounting screws.; All terminal screws backed out, ready-to-install.; For covering patents, see - Certifications: cULus Listed
